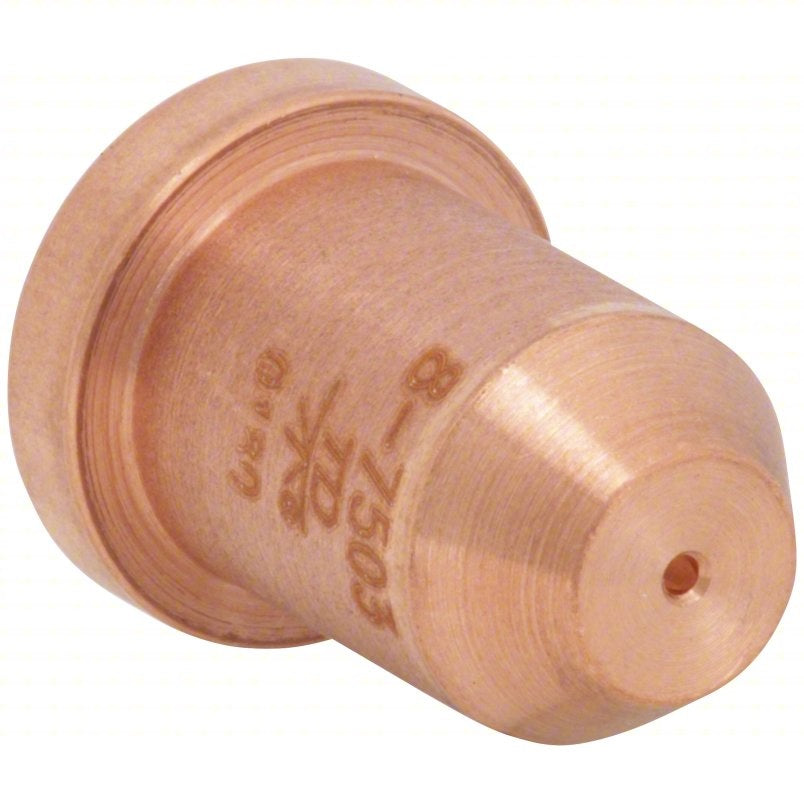

Thermal Dynamics 8-7503 Tip, 10 pack: Product Breakdown

“>

The Thermal Dynamics 8-7503 Tip, 10 pack is a plasma cutting consumable for users maintaining compatible Thermal Dynamics systems. This part is listed for the PCH-80 torch and is described as a 40 amp tip. It is also associated with the 625XR, Cutmaster 80XL, Pakmaster 75, Pakmaster 75XL, and Signature PAK625XR. Treat those fitment notes as the starting point for verification, not a substitute for checking the torch, machine, and current consumable chart before installation.

For maintenance buyers and shop leads, the practical question is not just whether the tip is available. The question is whether the consumable matches the torch body, the amperage setting, and the cut process you actually run. A wrong tip can cause poor arc start, unstable cut quality, excess wear, and unnecessary torch damage. Verify the part number on the old tip, the torch model, and the machine manual before you issue the replacement.

Key Takeaways

• Thermal Dynamics 8-7503 is a plasma tip sold in a 10-pack.
• It is listed for the PCH-80 torch and described as a 40 amp tip.
• Fitment is stated for 625XR, Cutmaster 80XL, Pakmaster 75, Pakmaster 75XL, and Signature PAK625XR, but you should verify against your manual and torch setup.
• Consumable life depends on cut current, standoff, air quality, pierce practice, and operator technique.
• If performance drops, inspect the tip first before replacing larger torch components.

What this part is used for

Plasma tips focus and constrict the plasma arc. In service, the tip is a wear item. When the orifice opens up, erodes, or becomes misshaped, cut quality declines. Common signs include rough edges, heavy dross, delayed arc transfer, unstable arc, and visible damage at the tip opening. If you see those symptoms, inspect the full consumable stack, not just the tip.

Check, inspect, verify before installation

Check the part number on the packaging and compare it to the torch consumable list. If your removed tip is readable, match the number stamped or identified by your internal records. Do not assume a similar-looking tip is correct.

Inspect the torch lead, electrode, shield, swirl ring, retaining cap, and any related wear parts. Tip wear may be a symptom of a larger issue such as misaligned assembly, dirty air, or incorrect operating technique. Look for carbon buildup, cracks, ovalization, heat discoloration, and thread damage where applicable.

Verify the amperage setting and cutting application. A 40 amp tip should be used only where the torch and system documentation support it. If the machine is being run above or below the intended operating range, verify the correct consumable set rather than forcing the current to match the part.

Troubleshooting support section

If cut quality is inconsistent, use the tip as the first checkpoint.

• Check arc start: Verify the electrode and tip are installed correctly and that the torch is fully assembled.
• Inspect air supply: Moisture, oil, and contamination can shorten tip life. Confirm clean, dry air at the torch input.
• Verify standoff: Excessive drag or too much gap can accelerate wear. Use the cutting method recommended by the machine maker.
• Check pierce technique: Aggressive piercing can blow molten material back into the consumables. Review pierce height and delay settings.
• Inspect the tip orifice: If the opening is enlarged, out of round, or burned, replace the tip and inspect the matching electrode.

If the same failure repeats after replacement, the root cause is likely upstream. Recheck torch assembly, air quality, power settings, and any process changes introduced before the problem started.

Product and parts notes

The available product information identifies this as the Thermal Dynamics 8-7503 Tip, 10 pack. It is described as a part for Thermal Dynamics PCH-80 and as a 40 amp tip. The listed compatible platforms are 625XR, Cutmaster 80XL, Pakmaster 75, Pakmaster 75XL, and Signature PAK625XR. If you are supporting mixed equipment in a maintenance crib, confirm that the torch system in service uses the same consumable family. Unknown (Verify) if your torch revision or retrofit kit changes the required tip stack.

Because this is a consumable, the value is in repeatable fitment and replacement control. Keep the part number tied to your issue list, not just the machine name. That reduces mis-picks when multiple Thermal Dynamics systems are in the same facility.

Support checklist for buyers and maintenance teams

• Confirm the torch model in use.
• Match the consumable part number to the old tip and current documentation.
• Verify amperage before release to the floor.
• Inspect the matching electrode and shield parts for wear.
• Log air quality and failure mode if tips are failing early.

Safety notes

Plasma cutting consumables are part of an energized cutting system. De-energize the machine and allow the torch to cool before service. Do not touch used consumables without verifying temperature. Use eye, hand, and body protection when inspecting torch parts. If the torch shows repeated overheating or unusual wear, remove it from service until the cause is identified.

FAQ

Is the Thermal Dynamics 8-7503 Tip, 10 pack a universal plasma tip?
No. It is listed for specific Thermal Dynamics torch systems. Verify the torch family and consumable chart before use.

What amp rating is listed for this tip?
It is described as a 40 amp tip. Verify that this matches your machine setup and application before installation.

What should I inspect when a tip wears out early?
Check the electrode, shield, swirl ring, air quality, standoff, and pierce technique. Early tip wear often points to a system issue, not just normal consumable life.

Can I use the part number alone to confirm fitment?
Use the part number as the first check, but also verify the torch model and machine documentation. Unknown (Verify) if your setup includes nonstandard torch revisions or retrofit components.
