TIG Gas Lens Collet Body #17, 18, 26 Torch 2PK (45V26-3/32″): Application and Buying Checks

Written by

A TIG gas lens collet body is a small part, but it controls two things that matter: tungsten retention and shielding gas flow. When the collet body is the wrong size, worn, or clogged, the torch can still arc, but the setup becomes harder to control. For buyers and maintenance teams, the main job is not to guess. It is to verify torch series, tungsten size, and the condition of the existing consumables before ordering.

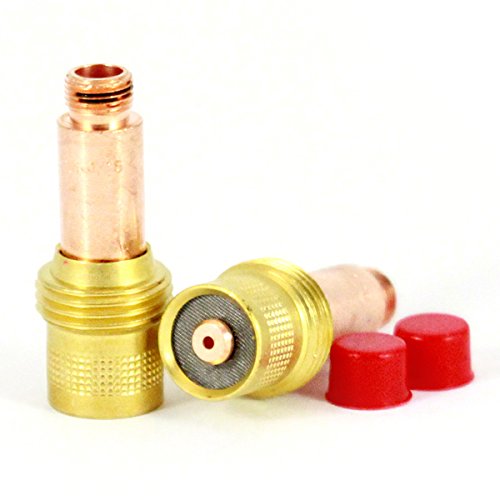

The TIG Gas Lens Collet Body #17, 18, 26 Torch 2PK (45V26-3/32″) is listed as a standard size gas lens collet body for TIG torch #17, #18, and #26. The critical buying point is the 3/32 in. tungsten size in the part title. If your torch, cup, collet, or back-end hardware does not match that setup, stop and verify before purchase.

Key Takeaways

Confirm torch series first: #17, #18, or #26.
Confirm tungsten diameter: 3/32 in. on this part title.
Inspect the current collet body for burn marks, thread damage, gas passage blockage, and slip-related wear.
Do not assume all gas lens parts interchange across every TIG torch variant.
Use the torch manual and existing consumable stack as the final check, not memory.

What This Part Does

A gas lens collet body holds the collet and tungsten in the torch head and supports shielding gas distribution through the lens assembly. In normal service, the part should clamp the tungsten securely, support consistent gas coverage, and let the operator maintain a stable arc without tungsten movement. If the collet body is worn, the tungsten may slip, gas coverage may become uneven, or the torch may feel inconsistent from one setup to the next.

For general troubleshooting on wear patterns, see TIG Torch Slipping Tungsten? Your Collet Body Is Worn (Here’s the Fix) and TIG Torch Consumable Wear Signs: Cup Cracks, Collet Slip, Gas Lens Clogs, and Dirty Tungsten.

Application and Fitment Checks

Before ordering, check the torch and the current hardware in the hand. Do not rely only on the torch body label if the torch has been rebuilt or mixed with aftermarket consumables.

Check

Check the torch series marking or manual: #17, #18, or #26.
Check the tungsten size currently used: 3/32 in. or Unknown (Verify).
Check whether the torch is built around a gas lens stack or a standard collet setup.
Check the cup, collet, and back cap for matching wear patterns or mixed parts.

Inspect

Inspect the existing collet body threads for galling, rounding, or heat distortion.
Inspect the gas lens screen or passage for clogging, soot, or spatter contamination.
Inspect the tungsten seating surface for slip marks or deformation.
Inspect the cup fit. If the cup feels loose or bottoms oddly, the stack may be mismatched.

Verify

Verify the replacement part title matches the torch series and tungsten size you actually use.
Verify the collet body style matches the rest of the consumable stack already on the torch.
Verify gas flow path cleanliness before blaming the torch body for poor shielding.
Verify the machine settings and gas delivery are correct before replacing parts unnecessarily.

Buying Checks for Maintenance Teams

For stocked consumables, the safest approach is to compare the failed part with the replacement before issuing it to production. A part can look close and still be wrong in the details that matter. If the torch is a repair item coming in from the floor, tag it with the torch series, tungsten size, and any cup or back-cap part numbers that were on the assembly.

When reviewing an order, confirm the following:

Torch family: #17, #18, or #26.
Tungsten size: 3/32 in. for this listed part.
Gas lens requirement: Only buy gas lens hardware when the torch setup is designed for it.
Current consumable stack: Unknown (Verify) if the torch has mixed components or no part markings.

If your team keeps alternative consumable families on hand, label bins clearly. Do not mix standard collet bodies and gas lens collet bodies in the same tray unless they are separated by torch series and tungsten size.

Support Note: Related Torch Buying Review

If you are also replacing the torch or the lead assembly, review the torch kit article here: Rocker R-17FV-25R TIG Torch Kit Review & Buying Guide (180A, Flex-Head, Valve, 25′ Rubber). Use it as a support reference only. Do not assume the torch kit and this collet body share the same exact consumable stack without checking the actual hardware.

Safety Notes

Shut down the welding power source before disassembly.
Let the torch cool before handling burned or discolored consumables.
Do not force a tungsten or collet into a damaged body.
Replace contaminated parts if they cannot be cleaned back to a reliable condition.
Use eye protection when disassembling hot or spattered torch components.

FAQ

Is this collet body only for #17, #18, and #26 torches?

The part title lists #17, #18, and #26 torch compatibility. If your torch is a different series, verify the manual or the existing consumables before ordering. Unknown (Verify) for any other torch family.

Does the 45V26-3/32″ title mean it is for 3/32 in. tungsten?

Yes, the part title indicates 3/32 in. tungsten size. Still verify the complete consumable stack on your torch, especially if the machine has been rebuilt or mixed with non-original parts.

How do I know if my old collet body is worn out?

Look for tungsten slip, rough threads, heat damage, clogged gas passages, or inconsistent shielding behavior. If the torch runs better after replacing the collet body, the old part was likely the problem. For a deeper wear checklist, use the consumable wear signs article linked above.

Can I use this part if my gas lens setup is not confirmed?

Do not assume. Confirm whether your torch is built for a gas lens assembly. If that is unclear, inspect the current hardware and verify the part stack before purchase.

Sources Checked

ArcWeld product listing: TIG Gas Lens Collet Body #17, 18, 26 Torch 2PK (45V26-3/32″)
Rocker R-17FV-25R TIG Torch Kit Review & Buying Guide (180A, Flex-Head, Valve, 25′ Rubber)
TIG Torch Slipping Tungsten? Your Collet Body Is Worn (Here’s the Fix)
TIG Torch Consumable Wear Signs: Cup Cracks, Collet Slip, Gas Lens Clogs, and Dirty Tungsten

Final check: match the torch series, confirm 3/32 in. tungsten sizing, and inspect the existing consumable stack before placing the order. If any of those details are unclear, mark them Unknown (Verify) and verify from the torch itself or the manual before buying.
