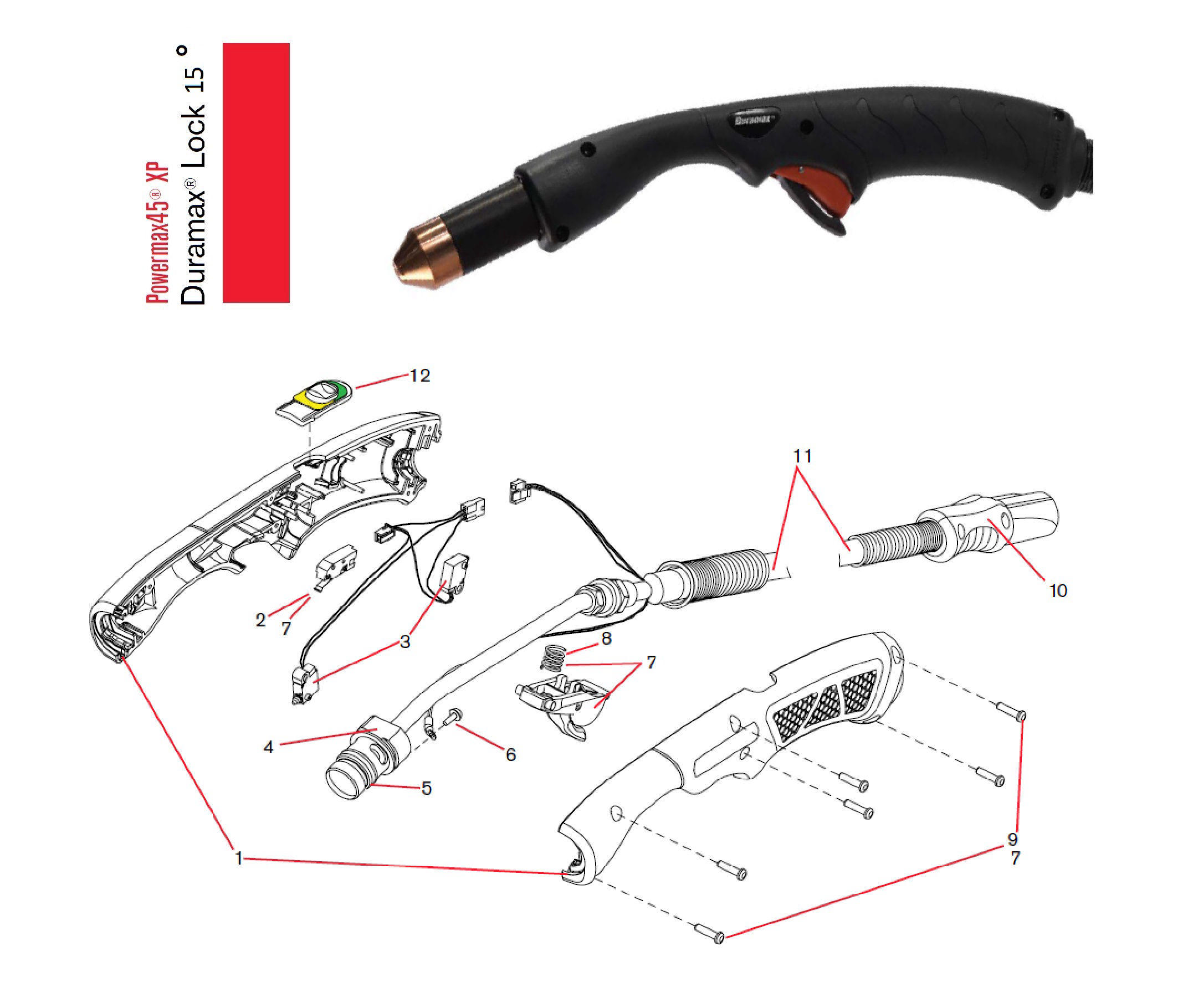

Hypertherm Duramax Lock 15 Degree Hand Torch Parts Breakdown: Replacement Decision Guide

If you are maintaining a Hypertherm Duramax Lock 15 Degree hand torch, the main job is not guessing part numbers. It is identifying the wear path, matching the torch to the machine context, and confirming the replacement against the catalog before anything is ordered. This is a consumable replacement problem first, and a parts-compatibility problem second.

Key Takeaways

• Use the torch’s breakdown page as the starting point, not the final approval step.
• Confirm the torch style, angle, and lock style before comparing parts.
• Inspect the nozzle, electrode, shield, swirl ring, and retaining hardware for heat damage, arc misalignment, and physical wear.
• If fitment is uncertain, stop and verify against the WSP lookup page before ordering.
• Do not assume a part from another Duramax family torch will fit. Verify each item by catalog reference.

What This Torch Parts Breakdown Is For

The Hypertherm Duramax Lock 15 Degree hand torch parts breakdown is useful when you need to replace worn consumables or identify a damaged torch component after poor cut quality, arc instability, or visible heat distortion. In practice, the breakdown helps you separate routine wear items from parts that may indicate a deeper torch issue.

For this torch, the critical point is to match the exact torch configuration shown on the source page: Hypertherm Duramax Lock 15 Degree Hand Torch Parts Breakdown. That page is the verified lookup source for the torch context provided here.

How to Work the Replacement Decision

Start with a visual inspection. Then move to part-by-part verification. Do not replace parts only because cut quality changed; verify the torch condition and the machine setup first.

Check

• Check the torch head for heat discoloration, cracks, or arc tracking marks.
• Check the consumable stack for uneven wear, melted edges, or carbon buildup.
• Check the lead and handle area for cuts, crushed sections, or loose strain relief.
• Check the retaining hardware for cross-threading, distortion, or seizure.

Inspect

• Inspect the electrode tip for deep crater wear or a collapsed center. If the wear pattern is abnormal, replace and verify arc transfer behavior.
• Inspect the nozzle orifice for ovality, spatter blockage, or visible deformation.
• Inspect the shield for heat damage, edge warping, or fit issues at the torch front end.
• Inspect any swirl ring or internal alignment part for cracks, burns, or contamination.

Verify

• Verify the torch model and angle match the catalog listing before selecting a replacement.
• Verify the part number from the lookup page or linked breakdown page, not from memory.
• Verify the machine context if the torch is being used on a specific plasma system. If the machine is not clearly identified, treat compatibility as Unknown (Verify).
• Verify that the replacement set matches the wear pattern you found. If only one part is damaged, do not automatically replace the full stack unless the inspection supports it.

Common Failure Signs That Point to Consumable Replacement

Most maintenance calls on plasma torches start with cut quality. That is useful, but not enough. Use the symptoms to guide inspection, then confirm with the part breakdown.

• Rough edge or heavy dross: often points to nozzle wear, incorrect standoff, or an electrode nearing end of life.
• Weak start or intermittent arc: may involve the torch front end, pilot arc behavior, or worn internal components. See the related troubleshooting guide for more on arc loss and no-start conditions: Pilot Arc Failure Troubleshooting.
• Excessive spatter in the front end: check the nozzle and shield for contamination and fit.
• Unexpected heat at the torch head: inspect for poor consumable seating or a damaged component stack.

If the torch is producing unstable arc behavior across more than one set of consumables, do not assume the consumables are the only issue. Confirm machine settings, air quality, and lead condition. If the cause is unclear, mark the condition as Unknown (Verify) and cross-check with the machine manual and torch breakdown.

WSP Lookup Section

Use the verified WSP source page below to review the torch breakdown and item context before ordering:

Open the Hypertherm Duramax Lock 15 Degree Hand Torch Parts Breakdown lookup

This lookup page should be treated as the catalog-backed starting point for identifying the correct parts. If a replacement item is not clearly confirmed on the page, do not guess. Record it as Unknown (Verify) and confirm before purchase.

Replacement Workflow for Maintenance Teams

1. Identify the torch style and front-end layout.
2. Remove the torch consumables and document the wear pattern.
3. Compare the damaged parts against the breakdown page.
4. Check whether wear is isolated to the consumables or extends into the torch head and lead.
5. Verify the replacement part number against the WSP lookup page.
6. Only then release the order.

Safety Notes

• Power down and isolate the plasma system before handling the torch head.
• Allow the torch and consumables to cool before inspection.
• Use eye protection when removing hot or stuck consumables.
• Do not force threaded parts. If a component binds, inspect for damage instead of tightening harder.
• Use compressed air and cleaning methods that do not introduce debris into the torch front end.

FAQ

How do I know if I need a full torch consumable set or only one part?
Inspect the wear pattern first. If only the nozzle shows normal end-of-life wear and the electrode is still within acceptable condition, a partial replacement may be enough. If multiple parts show heat damage or arc instability, verify whether the full stack should be replaced.

Can I use another Duramax torch part if it looks similar?
No. Similar appearance does not confirm compatibility. Use the exact breakdown page and verify each item number before ordering. If the match is not clear, treat it as Unknown (Verify).

What should I check before blaming the consumables for poor cut quality?
Check air quality, torch seating, work lead condition, standoff, and machine settings. Consumables are a common cause, but not the only one. If the issue persists after replacement, inspect the torch and power source path.

Where do I confirm the correct parts?
Use the verified lookup page linked above. That is the reference source for this torch breakdown.

Sources Checked

• Hypertherm Duramax Lock 15 Degree Hand Torch Parts Breakdown
• Plasma Consumable Compatibility: How to Verify Torch Parts Before Ordering
• Plasma Cutter Pilot Arc Failure Troubleshooting

When the torch condition is unclear, do not force a replacement decision. Inspect, verify, then order. That is the safe path for plasma support work.
