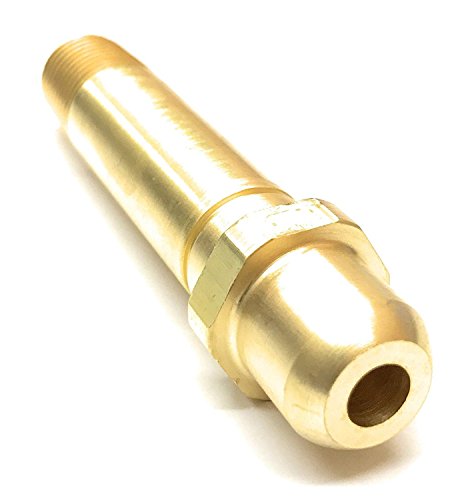

Western Enterprises 69 Regulator Inlet Nipple, Oxygen, CGA-540 x 1/4″ NPT, 3″ Length, Brass: Product Breakdown

“>

The Western Enterprises 69 regulator inlet nipple is a gas apparatus support part used in oxygen service. Based on the product listing provided, it is a brass fitting with a CGA-540 cylinder connection on one end and 1/4" NPT threads on the regulator-side end. The listed length is 3 inches. For buyers, technicians, and maintenance teams, the important question is not only what the part is, but whether it matches the connection pattern, service gas, and installation method required on the equipment in front of you.

Key Takeaways

• Use this part only where the gas connection pattern matches the existing equipment.
• The listing identifies oxygen service and CGA-540 to 1/4" NPT interface geometry.
• Do not assume compatibility from thread size alone; verify the regulator inlet, cylinder valve, and sealing method.
• Brass is commonly used in gas apparatus support, but the application still depends on the exact service conditions. Unknown (Verify) if your system has special material requirements.
• Installation quality depends on clean threads, correct orientation, and leak verification after assembly.

What the Part Does

This inlet nipple bridges a cylinder-side oxygen connection to regulator-side plumbing. In practical terms, it is a transition fitting. One side connects to CGA-540 oxygen cylinder hardware, while the other side provides 1/4" NPT male or female connection geometry as listed by the product description. If your system uses a different regulator inlet style, a different CGA designation, or another thread form, do not force the fit. Verify the actual connection standard before ordering or installing.

Fit and Application Checks

Before installing any regulator inlet nipple, use a simple verification sequence:

1. Check the gas service. Confirm the system is oxygen service. Do not mix fuels, inert gases, or mixed-service assemblies without confirming the full setup.
2. Inspect the cylinder connection. Verify the cylinder valve connection is CGA-540, not a different CGA pattern. Do not rely on visual similarity alone.
3. Inspect the regulator inlet. Confirm the regulator-side port accepts 1/4" NPT plumbing as listed. Unknown (Verify) if your regulator uses a different thread form or sealing method.
4. Verify thread condition. Clean both male and female threads. Look for damaged starts, cross-threading, burrs, or contamination.
5. Verify length and clearance. The listed length is 3 inches. Check whether that length gives proper clearance to the regulator body, cabinet, wall, or manifold frame.

Troubleshooting Support: Common Problems to Check

If the assembly will not seal or does not fit as expected, isolate the issue before replacement.

• Problem: Thread engagement stops early.
  Check whether the thread form is correct. Verify you are not mixing NPT with another pipe thread standard. Inspect for debris, sealant buildup, or damaged starts.
• Problem: Leak at the joint.
  Check sealing surfaces, thread condition, and assembly torque method used on the regulator connection. Verify the fitting is intended for the exact service arrangement. Do not assume additional sealant will fix a mismatch.
• Problem: Wrong cylinder connection.
  Check the cylinder valve outlet marking. CGA-540 must be confirmed directly on the equipment or documentation.
• Problem: Physical interference after installation.
  Verify the 3-inch length provides enough space for wrench access and hose routing. If not, select a different fitting arrangement that is approved for the system. Unknown (Verify).

Inspection Prior to Service

Use these checks every time the fitting is received or reinstalled:

• Inspect the brass body. Look for cracks, deep scratches, corrosion, dents, or machining defects.
• Inspect the threads. Confirm threads are clean and uniform from end to end.
• Inspect for contamination. Keep oil, grease, and shop debris away from oxygen service parts.
• Verify part identity. Match the product label, connection pattern, and service description before use.

Product Breakdown

The Western Enterprises 69 regulator inlet nipple, as listed, is a brass oxygen-service fitting with CGA-540 cylinder connection geometry, 1/4" NPT regulator-side threading, and a 3-inch overall length. That is the level of certainty available from the provided source. Do not add assumptions about pressure rating, certifications, seal type, or specific regulator brand compatibility unless those details are confirmed in the equipment documentation or by the manufacturer. Unknown (Verify) for any unpublished technical specification.

For maintenance buyers, the value of this part is straightforward: it is a connection component. It is not a complete regulator, not a cylinder valve, and not a universal adapter. The part only solves the interface problem if the rest of the assembly is already designed around CGA-540 and 1/4" NPT geometry.

Safety Notes

• Use oxygen-service parts only in oxygen service.
• Keep all fittings clean and free of oil, grease, and shop contamination.
• Do not guess on thread type or gas connection standard.
• Depressurize and isolate the system before removal or installation.
• After assembly, verify for leaks using the approved site procedure.

FAQ

Is this fitting a universal oxygen regulator adapter?
No. It is listed as a CGA-540 to 1/4" NPT regulator inlet nipple. Universal compatibility is not stated. Verify the exact equipment connection before purchase.

Can I use it on any regulator with a 1/4" NPT port?
Not automatically. The cylinder-side connection still has to match CGA-540, and the regulator assembly must be intended for oxygen service. Verify both ends of the system.

Does brass mean it is suitable for every oxygen application?
No. Brass is the listed material, but system requirements vary. Unknown (Verify) for any special material, cleaning, or approval requirement beyond the product listing.

What should I check first if the joint leaks?
Check thread condition, correct connection standard, clean assembly surfaces, and the regulator-side sealing method. Do not overtighten in an attempt to compensate for a mismatch.

Sources Checked

• ArcWeld product listing provided in the task: Western Enterprises 69 Regulator Inlet Nipple, Oxygen, CGA-540 x 1/4" NPT, 3" Length, Brass
