S19394-2 Lincoln Style Nozzle Insulator – Arc Weld by Masterweld Pack of (2): Product Breakdown

“>

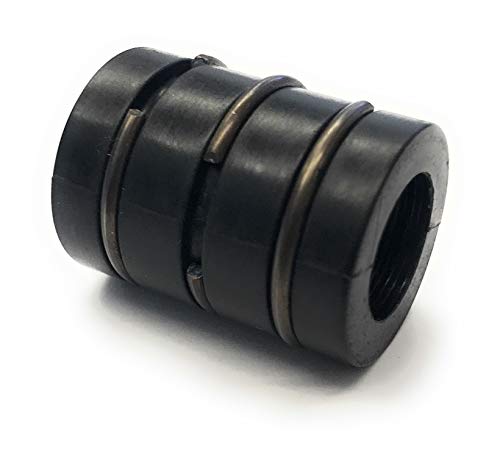

The S19394-2 Lincoln Style Nozzle Insulator – Arc Weld by Masterweld Pack of (2) is a replacement support part for MIG gun consumable assemblies. The product note provided by the source is specific: use with S18697-47 gas diffuser and Slip Style Nozzles, and it does not work with PRO series. That is the main fitment point to verify before you order or install.

For buyers, maintenance teams, and welding support staff, the practical question is not just what the part is called, but where it sits in the torch assembly and what it will physically mate with. An insulator in this location supports nozzle placement and helps maintain separation between the nozzle and internal consumable parts. If the fit is wrong, the torch may run poorly, parts may not seat correctly, or the assembly may fail during routine use.

Key Takeaways

• This is a Lincoln style nozzle insulator sold as a pack of 2.
• The source states it is for use with S18697-47 gas diffuser and Slip Style Nozzles.
• The source states it does not work with PRO series.
• Compatibility beyond that note is Unknown (Verify).
• Confirm gun model, diffuser, and nozzle style before installing.

What to check before you buy

Do not rely on the product name alone. Lincoln-style parts can look similar across multiple torch families, but the interface details matter. Before ordering, review the current consumable stack on the gun and verify the part path from diffuser to nozzle.

1. Check the diffuser part number. Compare your installed gas diffuser to S18697-47. If your diffuser number is different, compatibility is Unknown (Verify).
2. Inspect nozzle style. Confirm that the gun uses Slip Style Nozzles. If the nozzle is a different design, do not assume this insulator will fit.
3. Verify series family. The source says it does not work with PRO series. If the gun or consumable set is PRO series, stop and verify an alternate part.
4. Check wear history. If you are replacing insulators often, inspect the nozzle, diffuser, and contact tip for heat damage, spatter buildup, or thread damage. The insulator may be a symptom, not the root cause.

How to inspect the part on arrival

When the package arrives, inspect both pieces before bringing them into service. This is basic receiving control and helps avoid assembly problems later.

• Verify quantity. The product is sold as a pack of 2. Confirm both parts are present.
• Inspect molding or machining quality. Look for cracks, deformation, or damaged interfaces. Any defect at the insulating surfaces can affect fit.
• Check the seating surfaces. Confirm the part seats cleanly on the intended diffuser and accepts the intended slip nozzle without forcing.
• Compare to the removed part. If you replaced an old insulator, place the old and new parts side by side and compare profile, depth, and engagement points.

Installation check steps

Use a controlled install process. Do not force a consumable stack together if the parts resist seating.

1. Power down the welding system. Lock out or de-energize the machine according to site procedure.
2. Remove the nozzle and diffuser assembly. Clean any spatter or buildup before attempting reassembly.
3. Install the insulator on the correct diffuser. Confirm the diffuser is S18697-47 or otherwise verified as compatible.
4. Fit the slip style nozzle. Seat the nozzle fully without excessive force.
5. Verify alignment. Confirm the nozzle is centered and stable, with no visible tilt or cross-seating.
6. Test run at low duty. Run a brief weld or gas-only check per shop practice and inspect for abnormal heat, looseness, or arc instability.

Troubleshooting and support checks

If the assembly does not fit or the torch behaves poorly after replacement, work through the problem methodically.

Problem: The insulator does not seat correctly

• Check: Is the diffuser actually S18697-47?
• Inspect: Look for spatter, burn marks, or distortion on the diffuser and nozzle.
• Verify: The gun is not PRO series. The source says this part does not work with PRO series.

Problem: Nozzle feels loose after installation

• Check: Is the nozzle style truly Slip Style?
• Inspect: The nozzle and diffuser engagement surfaces for wear.
• Verify: There is no missing support part in the consumable stack.

Problem: Frequent burnback or heat damage

• Check: Contact tip condition, gun stickout, and spatter control practices.
• Inspect: Whether the nozzle and insulator are being overheated by poor fit or buildup.
• Verify: The torch is configured correctly for the application; the insulator alone will not correct a setup issue.

Product and parts notes

This article is limited to the supplied ArcWeld product information. The confirmed product note is:

• Product: S19394-2 Lincoln Style Nozzle Insulator – Arc Weld by Masterweld Pack of (2)
• Use note: Use with S18697-47 gas diffuser and Slip Style Nozzles
• Restriction note: Does not work with PRO series

Any additional fitment data is Unknown (Verify). If you are supporting multiple gun models in the shop, keep the current removed part and the gun model reference available before you place a replacement order.

Safety notes

• De-energize equipment before touching consumable assemblies.
• Allow hot components to cool before handling.
• Do not force mismatched parts together.
• Use eye protection when removing spatter or cleaning the nozzle stack.
• If any part shows cracking, severe heat damage, or deformation, replace it rather than returning it to service.

FAQ

Is this insulator compatible with PRO series guns?

No. The source note says it does not work with PRO series. If your setup is PRO series, compatibility is Unknown (Verify) until you confirm a different part.

What diffuser should I check first?

Check for S18697-47 gas diffuser, since that is the only diffuser called out in the source note. If your diffuser is different, verify fit before use.

What nozzle style is specified?

The source calls for Slip Style Nozzles. If you use another nozzle style, do not assume this insulator will fit correctly.

How many parts are included?

The product title states a pack of (2). Verify the received quantity during inspection.

Sources Checked

• ArcWeld product page: Product not found.
