Model: Millermatic® 211 Pro
Note for Readers: This post may contain affiliate links. If you purchase through them, we may earn a small commission at no cost to you. Thank you for supporting our site.
Introduction

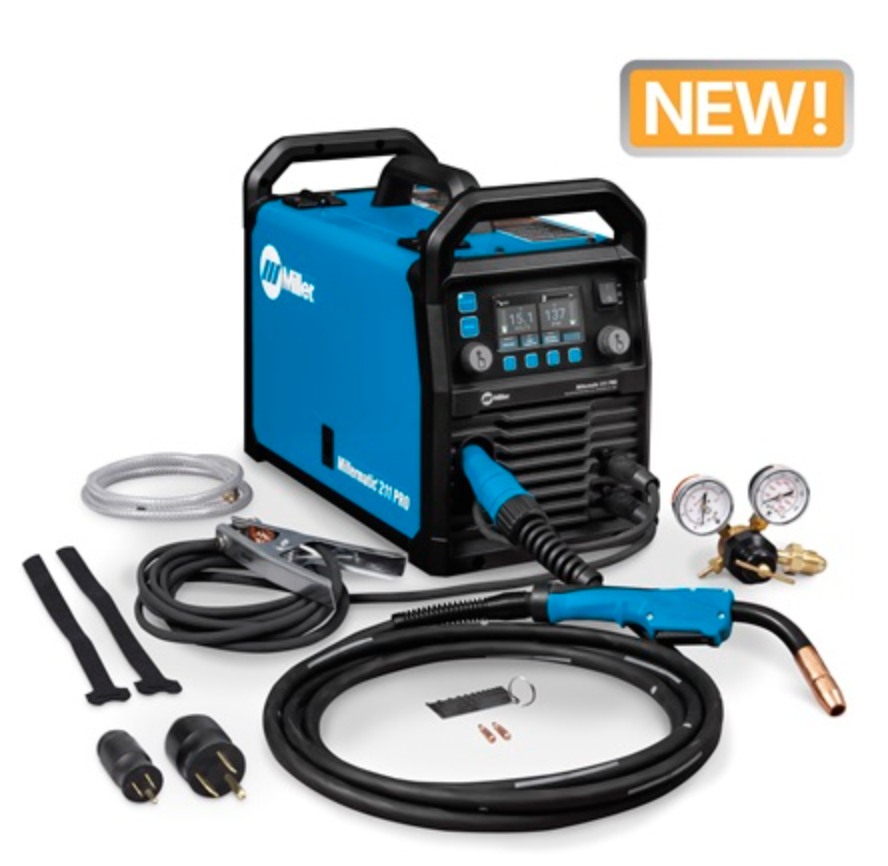

The Miller Electric Millermatic 211 Pro is a compact, professional-grade MIG (GMAW) welder designed for use across a wide spectrum of metal fabrication tasks. Built with both portability and welding performance in mind, it’s an evolution of one of Miller’s most popular mid-range welders, optimized for ease-of-use, multi-voltage operation, and superior arc quality.
This machine occupies a sweet spot for professional fabricators, maintenance personnel, students, field technicians, and DIY welders demanding industrial performance in a lightweight package. With its ability to run on both 120V and 240V input power, the Millermatic 211 Pro is suited for everything from shop settings to on-site jobs.
Types / Variants / Models
At the time of writing, Miller Electric lists only the Millermatic 211 Pro as a standalone model—this is a streamlined iteration of the previous Millermatic 211 (non-“Pro”) model.
While there’s no fleet of variants under the “211 Pro” name, it’s useful to differentiate:
-
Millermatic® 211 Pro (Current Model)
- Updated UI and design
- Simplified interface with precision adjustment
- New industrial-grade drive system
-
Millermatic® 211 (Legacy Models)
- Auto-Set™ technology (not present in the “Pro”)
- Slightly different interface and control system
The “Pro” version is aimed more at professionals who prefer manual voltage and wire feed control over automated settings like Auto-Set™ found in consumer models.
Key Features or Specifications
Here’s a breakdown of the critical specs and design features that define the Millermatic 211 Pro:
Power Source
- Multi-voltage input: 120V or 240V
- MVP™ (Multi-Voltage Plug): Adapts to varying job site power supplies
Benefit: Maximum portability without sacrificing performance
Output Amperage Range
- 120V Input: 30–150 A
- 240V Input: 30–230 A
Benefit: Wide amperage range accommodates thin-gauge to thick materials (24 ga to 3/8″ in a single pass)
Duty Cycle
- 240V: 40% @ 150A
- 120V: 20% @ 115A
Benefit: Practical for extended use at medium output; improves productivity with adequate cooling time
Machine Dimensions & Weight
- Height: 12.5 in
- Width: 11.25 in
- Depth: 20.5 in
- Net Weight: 38 lbs
Benefit: Extremely portable for a welder with this power class
Wire Compatibility
- Wire sizes supported:
- Solid wire: 0.023–0.035 in
- Flux-cored wire: 0.030–0.045 in
Benefit: Flexible enough for both MIG and FCAW applications
Build & Durability
- Industrial-grade cast aluminum drive system
- Integrated spool gun control for aluminum welding
Benefit: Long operational life and compatibility with spool guns like the Spoolmate™ 100
Certifications
- CSA-certified
- IP23S-rated for rugged environments
Benefit: Meets key safety and durability standards expected in professional use environments
Usage & Compatibility
Supported Welding Processes
- GMAW (MIG)
- FCAW (Flux-Cored Arc Welding)
(Not compatible with SMAW or GTAW)
Welder Compatibility
- Ready out of the box for MIG and flux-cored processes
- Compatible with accessories such as the Spoolmate™ 100 spool gun for aluminum
- Works with standard MIG consumables and drive rolls
User Experience Highlights
- Manual controls: No Auto-Set™, requires knowledge of voltage/wire speed chart
- Digital voltage and wire feed readouts: Ensures consistency and ease of setup
- Smooth arc starts with minimal spatter: Reduces need for post-weld cleanup
Pros
- Lightweight and portable
- Excellent arc characteristics
- Dual-voltage capability
- Ideal for aluminum with a compatible spool gun
Cons
- No Auto-Set™ feature may require a learning curve for beginners
- Slightly more expensive than entry-level models
Common Applications
The Millermatic 211 Pro has been widely adopted across various use cases due to its ability to weld a broad range of materials and manage differing material thicknesses effectively.
Industries and Job Types
- Automotive repair & fabrication
- Farm and ranch maintenance
- General metal fabrication
- Field/portable welding
- Light industrial manufacturing
- Technical education programs
Material Compatibility
- Mild steel, stainless steel, aluminum (with spool gun)
- Welds steel thicknesses from 24-gauge to 3/8 in in a single pass
Why It’s Ideal
- Its power-to-weight ratio makes it perfect for mobile fabricators
- Dual-voltage input means it works equally well in workshops and field settings
- Designed for performance in demanding environments with consistent weld quality
Tips & Best Practices
To get the most from your Millermatic 211 Pro, consider these tips:
Setup Tips
- Use the included setup chart for voltage/wire feed references based on material type and thickness
- Ensure correct polarity depending on weld wire type (e.g., reverse polarity for solid wire with shielding gas, straight polarity for flux-core)
Welding Practices
- Use clean, properly prepared material for stronger welds
- Maintain a steady travel speed to avoid undercut or poor penetration
Maintenance Recommendations
- Clean drive rolls and liner regularly to avoid feed issues
- Store indoors if possible—while IP23S rated, prolonged moisture exposure affects electronics
- Blow out dust and debris periodically with dry compressed air
Troubleshooting
- Welds sputter? Check wire speed and contact tip size
- No arc? Confirm ground clamp connection, spool gun toggle, and trigger circuit
- Wire feeding erratically? Check for liner wear or incorrect tension on feed rolls
Conclusion
The Miller Electric Millermatic 211 Pro delivers professional-grade performance in a compact and portable MIG welder. Designed with structural repair
