A grinding wheel that wobbles during operation is usually caused by damaged flanges, incorrect wheel mounting, bent spindles, worn bearings, improper wheel storage, or using the wrong wheel for the grinder. Even minor wheel runout can reduce grinding accuracy, overload bearings, increase vibration, and create a dangerous wheel failure risk at operating RPM.
Common Symptoms
Visible side-to-side wheel movement during rotation.
Vibration through the grinder body or handle.
Uneven grinding marks or gouging.
Premature edge wear on flap discs or grinding wheels.
Difficulty maintaining straight cuts.
Excessive operator fatigue from vibration.
Likely Causes
Improper wheel mounting: Dirt, burrs, or metal debris trapped behind the wheel prevent proper seating.
Damaged mounting flanges: Bent or worn flanges create uneven clamping pressure.
Bent spindle shaft: Impact damage from dropped grinders commonly bends spindle assemblies.
Worn grinder bearings: Bearing play allows oscillation under load.
Wheel damage: Cracked, warped, moisture-damaged, or expired wheels may not rotate true.
Incorrect wheel selection: Oversized or incompatible wheels create instability and imbalance.
Inspection Steps
Disconnect grinder power before inspection.
Remove the wheel and clean both flange surfaces completely.
Inspect the abrasive wheel for cracks, chips, or uneven wear.
Check spindle runout manually while rotating the shaft slowly.
Verify wheel RPM rating exceeds grinder RPM.
Inspect arbor fitment and mounting hardware compatibility.
Common Wrong-Part Mistakes
Installing wheels with incorrect arbor sizes.
Running cut-off wheels sideways as grinding wheels.
Using missing or incorrect flange washers.
Using moisture-damaged abrasive wheels from poor storage.
Field Fix vs Proper Fix
Field fix: Remove and remount the wheel correctly, clean flange surfaces, and replace visibly damaged abrasives. Proper fix: Replace bent spindles, worn bearings, damaged flanges, or incorrect wheel assemblies. Persistent wobble should never be ignored on high-speed grinders.
Ignored Failure Consequences
Operating with a wobbling grinding wheel increases the chance of wheel breakage, grinder damage, poor surface finish, operator fatigue, and severe injury from abrasive wheel fragmentation.
Safety Notes
Always follow abrasive RPM ratings and mounting instructions. Never use cracked wheels. Use face shields, gloves, hearing protection, and safety glasses when troubleshooting grinders and abrasive equipment.
A spool gun trigger delay usually shows up as slow wire-feed startup, delayed arc initiation, intermittent trigger response, or a noticeable pause between pulling the trigger and wire movement. In most cases, the problem is caused by a failing trigger switch, damaged control wiring, dirty connections, relay problems, worn gun connections, or feeder communication issues between the spool gun and power source.
Common Symptoms
Trigger pulled but wire feed starts late.
Gas flows before wire movement begins.
Arc starts inconsistently or sputters on startup.
Trigger response changes when cable is bent.
Intermittent dead trigger with occasional normal operation.
Wire feed hesitates during tack welds.
Likely Causes
Worn trigger microswitch: Internal trigger contacts can become intermittent from repeated use.
Broken control wires: Repeated cable flexing near the handle or connector can fracture low-voltage control wiring.
Dirty gun connector pins: Oxidized or loose pins create inconsistent trigger signal transmission.
Failing feeder relay or contactor: Delayed relay engagement can cause noticeable startup lag.
Drive roll slippage: Worn rolls or incorrect tension delay wire movement during startup.
Inspection Steps
Disconnect power and inspect the trigger wiring at the handle and connector.
Check gun pins for looseness, corrosion, or overheating discoloration.
Verify spool brake tension is not excessive.
Inspect drive rolls for wear and confirm correct groove type for aluminum wire.
Test trigger continuity while flexing the gun cable gently.
Listen for delayed relay clicking inside the feeder or power source.
Common Wrong-Part Mistakes
Installing oversized contact tips that slow startup and increase burnback.
Using standard steel drive rolls on aluminum wire.
Replacing the gun before testing trigger circuits and relay functions.
Using incorrect spool gun adapters or incompatible control harnesses.
Field Fix vs Proper Fix
Field fix: Clean connector pins, reduce spool drag, tighten drive roll settings correctly, and reposition damaged cable sections temporarily. Proper fix: Replace damaged trigger switches, broken control wires, worn relays, or failing feeder boards and verify gun compatibility with the machine.
Related Failure Paths
Aluminum burnback
Erratic wire feed speed
Birdnesting near drive rolls
Contact tip overheating
Motor overload shutdown
Safety Notes
Disconnect input power before opening feeder cabinets or servicing trigger circuits. Spool guns contain moving feed components and electrically live trigger systems that can cause injury or accidental arc initiation during testing.
Aluminum spool gun burnback happens when the welding wire melts into the contact tip before feeding away from the arc. The most common causes are incorrect wire-feed speed, improper voltage settings, worn contact tips, feeding resistance, poor grounding, trigger timing problems, or excessive stickout. Because aluminum wire is soft and transfers heat quickly, spool gun systems are especially sensitive to feed interruptions and startup instability.
Common Symptoms
Wire fused inside the contact tip.
Arc stops suddenly during welding.
Erratic startup with popping or sputtering.
Wire feed motor continues but wire does not advance.
Birdnesting or wire deformation near the drive rolls.
Frequent tip replacement during aluminum welding.
Likely Causes
Wire-feed speed too low: The arc burns the wire back faster than it feeds.
Excessive voltage: High arc energy overheats the wire and contact tip rapidly.
Worn or undersized contact tip: Aluminum expands from heat and can seize inside tight or damaged tips.
Poor grounding: Weak work clamp contact destabilizes arc transfer.
Drive roll slippage: Incorrect tension or wrong roll type interrupts feeding.
Trigger delay or startup lag: Delayed wire-feed startup allows the arc to burn back into the tip immediately.
Inspect the contact tip for fused wire and overheating discoloration.
Verify correct tip size for the aluminum wire diameter.
Check drive roll type and tension settings.
Inspect spool brake adjustment for excessive drag.
Verify clean work clamp contact directly on bare metal.
Inspect cable routing for sharp bends or twists.
Test trigger response and startup timing.
Common Wrong-Part Mistakes
Using steel MIG contact tips for aluminum applications.
Installing incorrect drive roll groove styles.
Using standard MIG liners instead of spool-gun-compatible liners.
Running worn contact tips far beyond service life.
Field Fix vs Proper Fix
Field fix: Increase wire-feed speed slightly, reduce voltage if needed, replace the contact tip, and verify proper spool tension. Proper fix: Correct feeder setup, replace worn drive components, repair trigger or relay delays, and verify the spool gun matches the wire diameter and machine settings.
Related Failure Paths
Birdnesting
Contact tip overheating
Drive roll wear
Motor overload shutdown
Erratic aluminum arc starts
Safety Notes
Disconnect power before servicing spool guns, drive systems, or contact tips. Burnback conditions can leave electrically hot wire fused inside the gun assembly immediately after welding.
Sources Checked
Lincoln Electric MIG and spool gun equipment catalogs
An oxy-fuel hose leak should be treated as an immediate safety problem, not a minor nuisance. Leaks most often show up at hose fittings, regulator connections, torch inlets, cracked hose jackets, worn check valves, flashback arrestors, or damaged crimp ends. If oxygen or fuel gas is leaking, shut the cylinders off, bleed pressure from the system, ventilate the area, and inspect before relighting the torch.
Common Symptoms
Hissing sound near regulator, hose, torch, or fittings.
Fuel-gas odor around the work area.
Flame changes when the hose is moved.
Regulator pressure drops while the torch valves are closed.
Bubbles appear during approved leak-solution testing.
Hose jacket is cracked, burned, cut, soft, swollen, or oil-contaminated.
Likely Leak Points
Cylinder valve to regulator: Damaged seats, loose regulator nuts, dirt, or wrong connections can leak at the cylinder outlet.
Regulator outlet fittings: Loose hose nuts, worn sealing faces, or cross-threaded fittings can leak under pressure.
Hose crimp ends: Repeated bending near the ferrule can crack the hose internally.
Flashback arrestors and check valves: Damaged threads or worn seals can leak at either side of the device.
Torch inlet connections: Loose nuts or damaged threads can leak where hoses attach to the torch handle.
Hose body: Burns, cuts, abrasion, dry cracking, or chemical contamination can create pinhole leaks.
Inspection Steps
Close both cylinder valves.
Open torch valves briefly to bleed system pressure, then close the torch valves.
Back out regulator adjusting screws before repressurizing.
Visually inspect the full hose length for burns, cuts, kinks, swelling, oil, grease, and abrasion.
Check all fitting threads, nuts, crimp sleeves, flashback arrestors, and torch inlets.
Repressurize one gas side at a time.
Apply approved leak detection solution to fittings and suspect hose areas.
Watch for growing bubbles. Any bubble formation means repair or replacement is required.
Do not use a flame to check for leaks.
Regulator Drop Test
With the torch valves closed and the system pressurized, close the cylinder valve and watch the working-pressure gauge. A pressure drop can indicate a downstream leak in the regulator outlet, hose, arrestor, check valve, or torch valve. Test oxygen and fuel-gas sides separately so the leak path is easier to isolate.
What To Verify Before Ordering Hose
Gas service: oxygen/fuel-gas twin hose or single-line hose.
Fuel type: acetylene, propane, propylene, natural gas, or alternate fuel.
Hose grade required for the fuel gas being used.
Inside diameter and length.
Fitting size and thread direction.
Compatibility with regulators, torch handle, check valves, and flashback arrestors.
Common Wrong-Part Mistakes
Using hose not rated for the fuel gas.
Mixing oxygen and fuel-gas fittings incorrectly.
Reusing damaged hose nuts or crushed sealing faces.
Skipping check valves or flashback arrestors after hose replacement.
Repairing hose with tape instead of replacing the damaged assembly.
Field Fix vs Proper Fix
Field fix: Tighten a loose fitting only after depressurizing the system and confirming the threads and sealing surfaces are undamaged. Proper fix: Replace leaking hose assemblies, damaged fittings, failed check valves, leaking flashback arrestors, or contaminated regulators. Do not tape, clamp, or splice damaged oxy-fuel hose unless the repair method is approved by the hose and equipment manufacturer.
Ignored Failure Consequences
Ignoring an oxy-fuel hose leak can lead to fire, flashback, regulator damage, unstable flame settings, oxygen-enriched clothing or work areas, fuel-gas accumulation, and serious injury. Fuel-gas leaks are especially hazardous in pits, confined spaces, vehicles, and poorly ventilated shops.
Safety Notes
Keep oil and grease away from oxygen equipment.
Never check leaks with an open flame.
Ventilate the area before relighting any torch.
Do not use damaged, burned, cracked, swollen, or contaminated hose.
Keep cylinders closed when equipment is not in use.
Use proper PPE for oxy-fuel cutting and heating work.
Sources Checked
Uploaded welding accessory catalogs
Uploaded welding PPE and safety catalog references
Existing oxy-fuel troubleshooting coverage on the blog
A worn, kinked, contaminated, or wrong-size MIG gun liner is one of the most common causes of birdnesting, burnback, erratic arc starts, wire chatter, and poor feed stability. Before replacing the feeder motor, gun, contact tip, or drive rolls, verify the wire diameter, liner size, gun length, drive-roll style, tip condition, and cable routing. A liner that is too tight, too dirty, cut too short, or crushed near the power pin can create enough drag to make the feeder slip or shove wire into the drive-roll compartment.
Common Symptoms
Wire birdnests at the feeder or piles up near the drive rolls.
Arc starts, then burns back into the contact tip.
Wire feeds with a pulsing, jerky, or scratching feel.
Drive rolls slip even after tension adjustment.
Contact tips wear quickly or seize to the wire.
Weld bead becomes inconsistent even with correct voltage and wire feed speed.
Likely Causes
Symptom
Likely liner-related cause
What to check first
Birdnesting
Excess drag or wrong liner ID
Wire diameter, liner marking, cable bends
Burnback
Wire slows before exiting tip
Tip bore, liner contamination, stickout
Wire chatter
Kinked liner or crushed gun cable
Gun laid straight during test feed
Drive-roll slipping
Restriction downstream of rolls
Nozzle, tip, diffuser, liner, power pin
Aluminum feed trouble
Wrong liner material or excessive push distance
U-groove rolls, liner type, gun length
Inspection Steps
Remove the contact tip and feed wire through the gun. If feed improves immediately, inspect the tip size and wear.
Lay the gun cable as straight as practical. If feeding improves, the liner may be worn, kinked, or too tight for the wire.
Back off drive-roll tension, then reset it only high enough to feed without slipping. Too much tension can deform wire and worsen liner drag.
Remove the liner and inspect both ends for burrs, copper dust, rust flakes, wire shavings, or burn marks.
Check that the liner is trimmed to the gun manufacturer’s required length. A short liner can leave a gap at the power pin or diffuser.
Confirm the liner supports the installed wire diameter and wire type.
Compatibility Notes
Liners are not universal just because the wire diameter looks similar. Verify the gun model, backend connector, consumable series, liner retaining system, wire diameter range, and whether the wire is steel, stainless, flux-cored, or aluminum. Flux-cored wire often needs a liner and drive-roll setup that handles a softer tubular wire without crushing it. Aluminum usually requires low-friction liner materials, correct drive rolls, and short, straight feed paths unless a spool gun or push-pull gun is being used.
Test Procedures
Tip-off feed test: Remove the contact tip and feed wire. If drag drops, replace the tip or verify tip size.
Gun-straight test: Feed wire with the gun cable straight. If the problem disappears, suspect liner wear or cable restriction.
Hand-pull test: With the drive rolls open, pull wire through the gun by hand. Heavy resistance points to liner, tip, diffuser, or cable damage.
Short-feed test: Remove the gun from the feeder and feed wire at the drive rolls only. If the feeder runs smoothly without the gun, troubleshoot the gun assembly before replacing feeder parts.
Field Fix vs Proper Fix
A temporary field fix is to straighten the gun cable, replace the contact tip, reduce sharp bends, blow clean dry air through the liner, and reset drive-roll tension. This may get a job through a shift, but it does not correct a worn, undersized, kinked, or contaminated liner. The proper repair is to install the correct liner for the gun and wire, trim it correctly, replace worn tips and diffusers, and verify drive-roll type and tension.
Visual Wear Indicators
Rust, copper dust, or black residue coming out of the liner.
Flattened or crushed wire after the drive rolls.
Deep grooves in the contact tip bore.
Burn marks or melting near the liner end.
Liner end cut at an angle, mushroomed, or missing its retaining cap.
Gun cable jacket kinked, pinched, or heat damaged.
What To Verify Before Ordering
Gun brand and exact gun model.
Backend connector style, such as Miller, Lincoln, Tweco, Euro, or other machine-specific connection.
Wire diameter currently used and any planned wire changes.
Whether the liner is conventional, front-loading, jump liner, conduit, or push-pull compatible.
Common Wrong-Part Mistakes
Ordering by wire size only instead of gun model and liner system.
Installing a steel liner for aluminum wire.
Using a contact tip smaller than the actual wire diameter.
Cutting the liner too short and leaving an unsupported gap.
Reusing worn drive rolls after installing a new liner.
Increasing drive-roll tension to overcome a blocked liner.
Related Failure Paths
Liner restriction can look like a feeder problem, but it can also be tied to contact tip burnback, incorrect drive rolls, wrong shielding gas setup, poor work-lead connection, damaged diffuser threads, or overheated gun components. When the liner is replaced, inspect the whole feed path from spool hub to contact tip instead of treating the liner as an isolated part.
Safety Notes
Turn off and disconnect welding output before disassembling the gun or feeder.
Wear eye protection when feeding wire with the gun pointed away from personnel.
Do not use oxygen to blow out a liner.
Keep hands clear of drive rolls during feed tests.
Replace heat-damaged gun parts instead of forcing them back into service.
Sources Checked
Parts and compatibility should be confirmed against the exact MIG gun parts breakdown, OEM consumables guide, and machine manual before ordering. When the welder brand requires code-number lookup, verify the code number from the machine nameplate rather than relying only on a product number.
Welding cable connectors are one of the most commonly mismatched components in welding setups. Connector size, amperage rating, cable gauge, polarity configuration, and machine-side receptacle type all affect compatibility. Using the wrong connector can cause overheating, intermittent arc starts, voltage drop, damaged receptacles, or unsafe cable heating.
This guide breaks down common welding cable connector types, fitment verification steps, compatibility concerns, inspection procedures, and common wrong-part mistakes before ordering replacement connectors or cable assemblies.
Key Takeaways
DINSE-style connectors are common on modern TIG, Stick, and multiprocess welders.
Connector size must match both cable gauge and machine receptacle size.
Tweco, Camlock, Stud, and DINSE connectors are not universally interchangeable.
Overheated connectors usually indicate loose crimps, undersized cable, or worn contact surfaces.
Always verify connector gender, amperage class, and cable size before ordering.
Machine manufacturers may use proprietary connector configurations.
Loose or oxidized connections increase resistance and arc instability.
What Welding Cable Connectors Do
Welding cable connectors provide a removable high-current electrical connection between the welding machine and the work lead, electrode holder, TIG torch, spool gun, or extension lead.
A properly fitted connector minimizes resistance while maintaining mechanical retention under vibration, heat, and repeated cable movement.
Are all DINSE connectors interchangeable? No. DINSE connectors vary by size class and pin diameter. Verify connector series before ordering.
Can I use a larger connector on smaller cable? Possibly, but cable retention and current transfer may suffer if the connector is not sized correctly.
Why does my connector get hot during welding? Usually due to resistance caused by loose crimps, oxidation, undersized cable, or worn contact surfaces.
Should both connector halves be replaced together? Recommended when wear or overheating exists on both mating surfaces.
Do imported inverter welders always use standard DINSE sizes? Unknown (Verify). Some imported machines use non-standard receptacle dimensions.
Next Step
Before ordering replacement welding cable connectors, verify machine receptacle size, cable gauge, amperage class, and connector family. Connector mismatch is one of the most common causes of overheating and intermittent welding performance problems.
Erratic MIG wire feeding usually starts in the wire path, not the voltage knob. Before changing weld settings, check the contact tip, liner, drive rolls, spool brake, gun lead position, and wire size match-up.
Key Takeaways
Start at the gun end: nozzle, contact tip, diffuser area, and liner.
Drive roll tension should be just tight enough to feed without crushing the wire.
Wire size, contact tip size, liner size, and drive roll groove must match.
If feed improves when the gun cable is straight, suspect liner drag, cable damage, or a kinked liner.
Do not use voltage or wire-speed changes to hide a mechanical feed problem.
Problem / Context
Erratic feeding shows up as surging arc length, wire stubbing into the puddle, drive rolls chirping, birdnesting at the feeder, burnback into the contact tip, or inconsistent wire speed at the arc. The common causes are restriction, slipping, crushed wire, incorrect consumable sizing, spool drag, or a worn feed component.
Main Support Section: Fast Diagnosis Path
Symptom
Likely Cause
Check
Fix
Notes
Wire surges or stutters
Worn contact tip, dirty liner, tight gun cable bend
Remove contact tip and feed wire with cable straight
Replace tip; inspect or replace liner
If feed improves without the tip, the restriction is near the gun end.
Birdnesting often means the feeder is pushing against a blocked path.
Burnback into contact tip
Wire feeding slows, tip wrong size, worn tip, liner drag
Compare tip size to wire diameter
Install correct fresh tip and verify liner
Burnback is often a feed problem before it is a settings problem.
Copper dust near drive rolls
Excess roll pressure, wrong groove, wire shaving
Open feeder and inspect rolls/guides
Clean feeder; reduce pressure; verify rolls
Dust can migrate into the liner and create repeat failures.
Compatibility / Verification Notes
Verify torch series, machine model, connector type, amperage rating, wire size, gas type, cable length, consumable family, lens size, OEM part number, and connector configuration.
For MIG feed problems, the most important fitment checks are wire diameter, contact tip size, liner size/range, drive roll groove size, drive roll groove type, gun connection, and feeder style. Lincoln Electric documentation notes that the contact tip, liner, and drive rolls should match the wire size. Miller gun and feeder manuals also list damaged contact tips, incorrect drive roll groove, hub tension, dirty liners, and worn drive rolls as wire-feed troubleshooting points.
Inspection or Troubleshooting Steps
Turn the welder off before opening the feeder or handling drive rolls.
Clip the wire cleanly and inspect it after the drive rolls. Flattened wire means too much pressure or the wrong groove.
Straighten the gun cable and test feed. If feeding improves, suspect liner drag or cable damage.
Remove the nozzle and contact tip. Feed wire again. If it feeds smoothly, replace the contact tip and inspect the diffuser/nozzle area.
Confirm contact tip size matches the wire diameter.
Confirm liner size/range matches the wire diameter and gun length.
Confirm drive roll groove size and groove type match the wire. Solid wire commonly uses V-groove rolls; flux-cored wire often requires knurled rolls. Unknown (Verify) for the specific feeder and wire.
Clean drive rolls and inlet/outlet guides. Remove copper dust, wire shavings, and debris.
Set drive roll tension using the minimum pressure that feeds reliably without slipping.
Adjust spool hub tension so the spool does not overrun when the trigger is released but does not drag heavily during feeding.
Run a test bead only after the mechanical feed path is smooth.
Parts / Consumables Table
Part
Function
Wear Signs
Verify Before Ordering
Notes
Contact tip
Transfers welding current to the wire and guides wire exit
Wire diameter, alloy/classification, process, shielding gas
Rusty or damaged wire can contaminate the liner.
Common Wrong-Part Mistakes
Installing a .035 contact tip with .030 wire, or the reverse.
Changing the contact tip but leaving a dirty liner in place.
Using a smooth V-groove roll on wire that needs a different groove style. Unknown (Verify).
Ordering a liner by wire size but not confirming gun length or torch series.
Assuming all “Lincoln-style” or “Tweco-style” consumables fit every gun.
Replacing the drive motor before checking restriction in the gun cable.
Related Failure Paths
Erratic wire feeding can lead to burnback, birdnesting, poor starts, inconsistent penetration, excessive spatter, poor bead shape, porosity from unstable arc behavior, and premature contact tip wear.
Turn off input power before opening the feeder, changing rolls, or servicing the gun.
Keep fingers clear of drive rolls and moving wire.
Wear safety glasses under the welding helmet when clipping wire or clearing birdnests.
Use proper welding PPE for arc radiation, sparks, spatter, and hot metal.
Follow the machine manual before changing feeder parts or working near energized equipment.
Do not test-feed wire toward your hand, body, gas hose, or another person.
FAQ
Why does my MIG wire feed fine in the air but stutter while welding?
The contact tip may be worn, overheated, spatter-blocked, or the wrong size. Liner drag can also increase when the gun cable bends during welding.
Should I tighten the drive rolls when wire feeding is erratic?
Only after checking for restriction. Too much drive roll pressure can flatten the wire, create copper dust, and plug the liner.
Can a bad liner cause burnback?
Yes. A dirty, kinked, or wrong-size liner can slow wire feeding enough for the wire to burn back into the contact tip.
How do I know if the contact tip is the problem?
Remove the contact tip and feed wire with the gun cable straight. If feeding becomes smooth, the tip or front-end consumables are likely restricting the wire.
What should match the wire size?
At minimum, verify the contact tip, liner size/range, drive roll groove, and feeder guide setup against the machine or gun manual.
Next Step
If the wire feed is erratic, replace the contact tip first, straighten the gun cable, test feed with the tip removed, inspect the wire after the drive rolls, and verify the liner and drive rolls match the wire. If the issue remains, inspect the liner and wire guides before suspecting the drive motor.
Sources Checked
Miller owner manuals: wire feed troubleshooting references for contact tip, drive roll pressure, drive roll groove, hub tension, dirty liner, and worn rolls.
Lincoln Electric operator/service manuals: matching contact tip, liner, and drive rolls to wire size; overload causes from improper tip, liner, drive rolls, guide tubes, obstructions, and cable bends.
Lincoln Electric MIG problems and remedies resource.
OSHA 1910 Subpart Q welding, cutting, and brazing standards.
OSHA eye protection guidance for welding and cutting.
Weld Support Parts internal MIG wire feed, burnback, wire feeding, and drive roll support pages.
6011 rod penetration problems usually come from low amperage, wrong polarity, weak AC output, long arc length, poor work lead connection, fast travel speed, electrode diameter mismatch, or poor joint preparation. E6011 is designed as a deep-penetrating, fast-freeze stick electrode, so if it is only laying metal on top, the first checks are current, polarity, arc force, work clamp condition, rod size, and whether the arc is actually digging into the joint root.
Do not correct poor penetration by weaving wider or piling on more weld metal. A wider bead can hide lack of fusion at the root and sidewalls. For repair work, grind or gouge out the suspect weld, clean the joint, verify rod size and amperage range, run the electrode on the correct current type, hold a tight arc, and use a controlled whip-and-pause or stringer technique suited to the position.
Common Symptoms
Symptom
Likely Cause
First Check
Bead sits high with little tie-in
Low amperage, long arc, or travel too fast
Increase amperage within rod range and shorten arc
Root does not open or keyhole
Insufficient heat, poor fit-up, or wrong electrode angle
Check root gap, land, and rod angle
Arc keeps snuffing out on AC
Low open-circuit voltage or poor connection
Verify machine capability and clean work clamp point
Lots of spatter but no digging arc
Long arc length or unstable current
Hold arc close and check leads
Burn-through on thin material
Too much amperage or rod too large
Drop rod size or use lower amperage
Good penetration on DC but weak on AC
AC machine output or rod condition issue
Try DC+ if available and verify dry electrodes
Root Cause Analysis
E6011 is a high-cellulose electrode intended for forceful arc action and all-position welding. It can run on AC or DC reverse polarity, but the machine, lead condition, rod condition, and operator technique still determine penetration. If amperage is too low, arc length too long, or the work return is poor, the rod loses its digging action and the weld bead washes over the surface instead of fusing into the joint.
For 6011 work, the arc should be controlled close to the puddle and directed into the joint. Internal stick-welding problems often overlap with general arc-control issues, so compare the setup against 6011 rod AC vs DC best practices and stick welding arc control guidance when the bead shape, travel speed, and amperage response do not match the rod size.
Quick Checks Before Changing Rods
Verify the electrode is E6011, not E6013, E7014, or another mild-steel rod with a different penetration profile.
Check the rod diameter against base metal thickness and joint opening.
Confirm polarity. E6011 is commonly used on AC or DC electrode positive, but verify the rod manufacturer’s label.
Clean the work clamp area to bright metal and move the clamp closer to the weld.
Inspect electrode holder jaws, lead lugs, cable damage, and loose connections.
Hold a short arc. A long arc creates spatter and reduces control at the root.
Use stringers or controlled whip-and-pause, not a wide cover weave to force penetration.
Run a test bead on matching scrap before rewelding the part.
Main Causes of Poor 6011 Penetration
Cause
What Happens
Correction
Amperage too low
Arc does not dig; bead rides high
Increase within published range
Wrong polarity
Arc force and penetration change
Use rod-label polarity; test DC+ where allowed
Weak AC output
Arc starts poorly or keeps going out
Use suitable AC machine or DC output if available
Arc too long
Spatter increases and heat spreads away from root
Hold tight arc, roughly near rod-core diameter
Travel too fast
Puddle does not dwell long enough to fuse
Slow down and watch root/sidewall tie-in
Rod too small
Not enough current capacity for joint thickness
Use correct diameter or multipass prep
Rod too large
Hard to control on thin work; burns through
Drop diameter and amperage
Poor joint prep
Arc cannot reach the root or sidewalls
Bevel, gap, clean, and fit the joint correctly
Inspection Steps
Look for a bead that is tall, ropey, or sitting on top of mill scale rather than tying into both sides.
Inspect the backside of open-root practice coupons where possible. Lack of root fusion means technique or setup needs correction.
Check whether slag is trapped ahead of the puddle. Slag in the leading edge can block fusion.
Check rod starts and restarts. Cold starts often show weak penetration before the puddle is established.
Inspect the work clamp and lead connections for heat discoloration, looseness, rust, paint, or undersized cable.
Break, bend, cut, or etch practice coupons where allowed to confirm penetration instead of judging surface appearance only.
Test Procedures
Test
Procedure
What It Tells You
Polarity comparison
Run the same rod on AC and DC+ where allowed
Shows whether the machine/current choice is limiting penetration
Amperage ladder
Run beads from low to high within rod range
Shows the point where arc force and tie-in improve
Arc-length test
Compare tight arc to long arc on scrap
Long arc usually increases spatter and weakens root control
Travel-speed test
Run slow, normal, and fast stringers
Fast travel commonly leaves poor sidewall fusion
Work-lead test
Move clamp to clean metal near weld
Improvement points to poor return path
Cut-and-etch check
Section a practice bead or fillet where allowed
Confirms actual root and sidewall penetration
Visual Wear and Setup Indicators
Rod sticks repeatedly even after amperage is increased slightly.
Electrode holder jaws are burned, loose, dirty, or do not grip the rod tightly.
Work clamp is attached to paint, rust, table slats, or far from the weld.
Arc changes sound when the lead is moved.
Rod coating is damaged, damp, broken, or flaking.
Weld bead has undercut from excessive current or long arc, but still lacks root fusion.
Slag is trapped at the toe or root because the puddle is not being controlled.
Compatibility Notes
E6011 compatibility depends on the welder output, current type, open-circuit voltage, electrode diameter, base metal thickness, and joint design. A small AC buzz box may run 6011 differently than a DC inverter with arc-force control. Some inverters run cellulosic electrodes better than others. If the arc is weak, unstable, or hard to restart, verify the machine manual for E6011 or cellulose-electrode support before blaming the rod.
Do not use 6011 as a substitute for a qualified structural, pressure, or code procedure unless the WPS allows it. For final passes requiring low hydrogen, impact requirements, or specific strength, verify whether 7018, 8018, or another rod is required after the root or repair pass.
What To Verify Before Ordering
Electrode classification: E6011, AWS A5.1 where required.
Rod diameter: 3/32 in, 1/8 in, 5/32 in, or other size.
Current type and polarity allowed by the rod manufacturer.
Welder output range and whether the machine supports cellulose electrodes well.
Base metal type, thickness, coating, and cleanliness.
Joint type: fillet, lap, butt, open root, patch, pipe, frame, or repair groove.
Position: flat, horizontal, vertical-up, vertical-down, or overhead.
Inspection requirement: visual only, bend, macroetch, code, customer, or WPS.
Whether follow-up fill/cap passes require a different electrode.
Common Wrong-Part Mistakes
Buying 6013 when deep penetration was expected from 6011.
Using 5/32 in rods on a machine that cannot supply stable current for that size.
Using 3/32 in rods on thick plate without proper bevel, gap, or multipass plan.
Running damp or damaged rods and blaming the machine.
Assuming AC and DC+ will behave the same on every welder.
Using 6011 for a final code weld when the procedure requires low-hydrogen electrodes.
Trying to overcome poor joint prep with extra amperage.
Field Fix vs Proper Fix
A field fix is to clean the clamp point, tighten the leads, switch to the correct polarity, increase amperage within the rod range, shorten the arc, slow travel, and run a test coupon. If penetration improves on scrap, correct the joint prep and repeat the weld on the part only if the repair requirement allows it.
The proper fix is to remove the defective weld, prepare the joint so the arc can reach the root, verify rod classification and diameter, set current from the electrode manufacturer range, confirm machine output, and weld with the technique required for the joint and position. For critical work, confirm penetration by the required inspection method before accepting the repair.
Related Failure Paths
6011 penetration problems connect to lack of fusion, cold lap, slag inclusion, excessive spatter, arc blow, rod sticking, burn-through, undercut, poor root opening, poor work return, and wrong electrode selection. Correct the electrical circuit, joint prep, rod size, and arc control before deciding the electrode itself is bad.
Safety Notes
Do not leave suspected lack of penetration in structural, lifting, pressure, trailer, frame, or safety-critical welds without inspection approval.

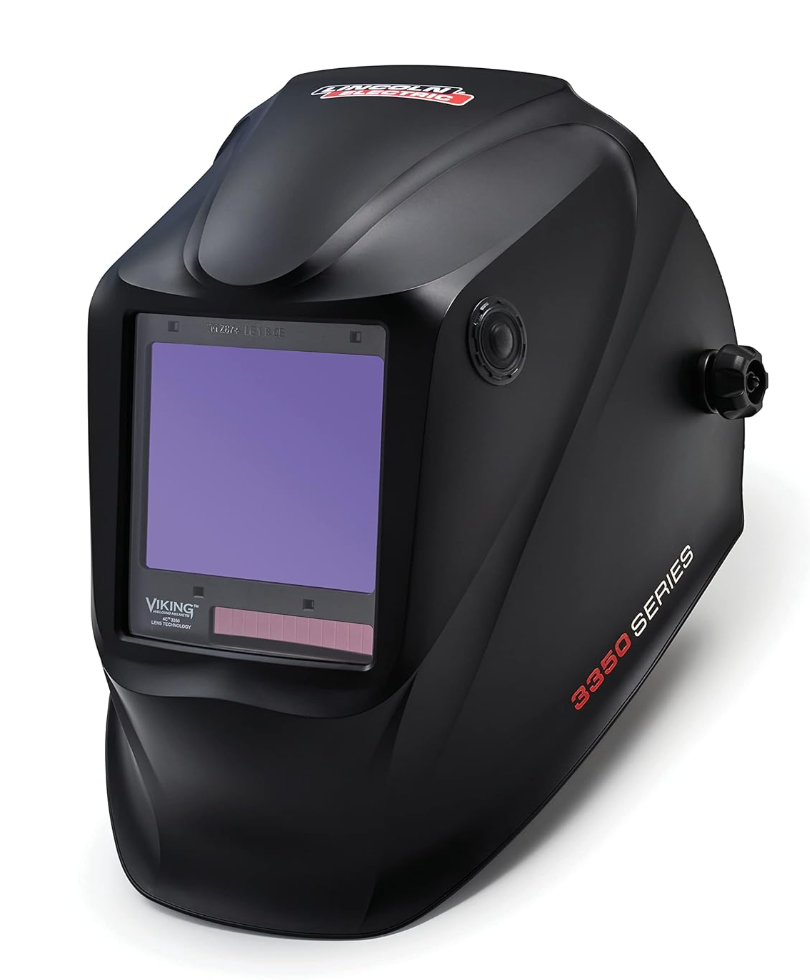

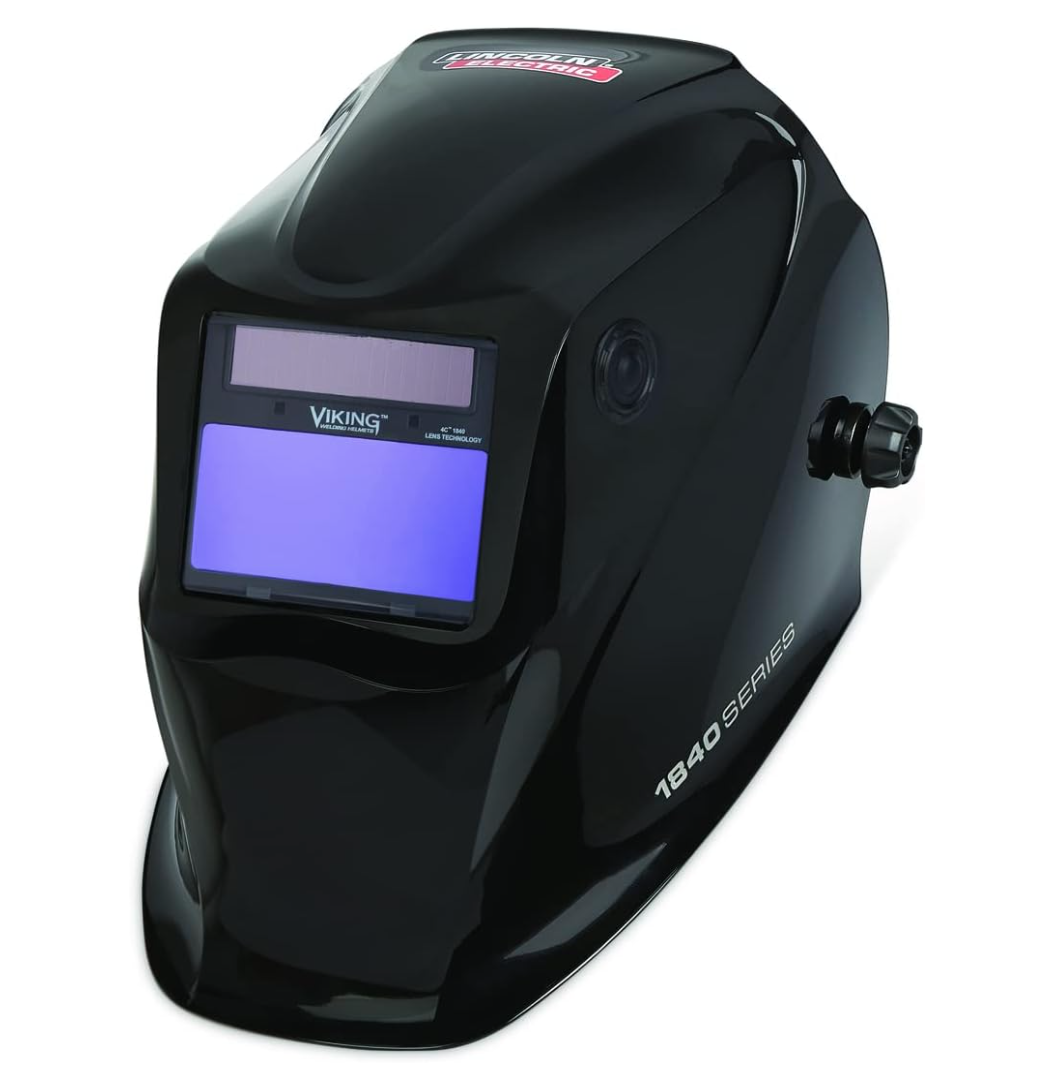

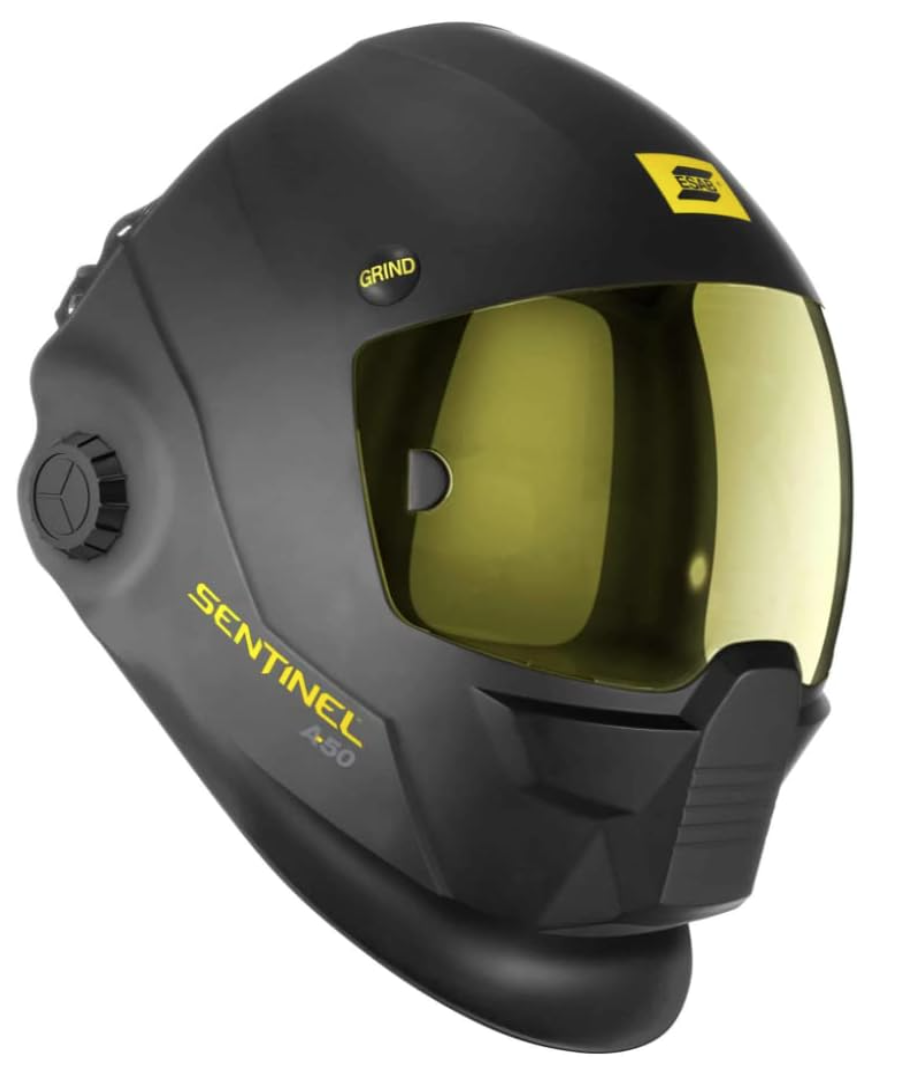

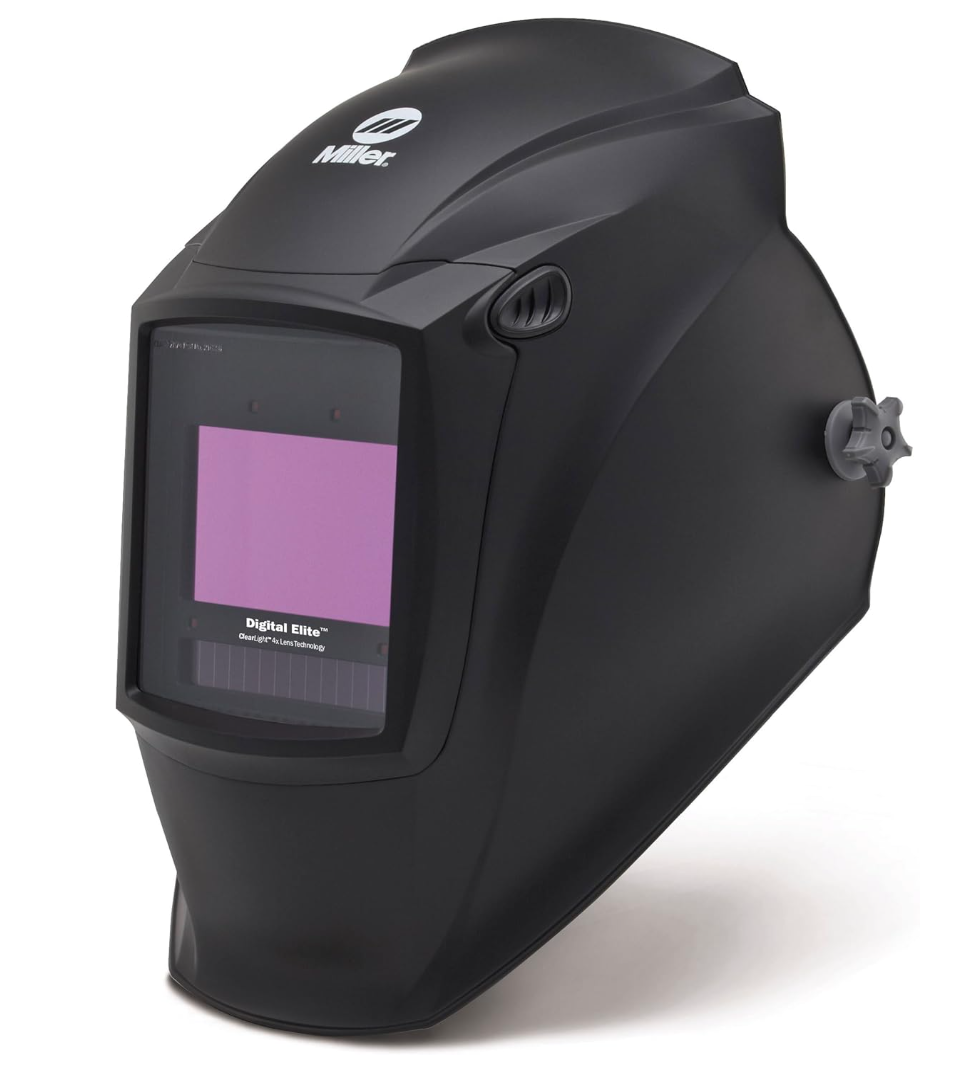

Wear welding helmet, gloves, jacket, eye protection, and respiratory protection suitable for the coating and base metal.
Remove paint, oil, solvents, galvanizing, and unknown coatings safely before welding.
Use ventilation. Cellulosic stick welding produces fumes and spatter.
Do not weld on closed containers, fuel tanks, or unknown vessels without proper cleaning and hot-work controls.
Disconnect power before servicing holders, cables, or machine terminals.
Sources Checked
Checked 6011, 6010, mild-steel electrode, polarity, arc length, amperage, joint prep, and stick welding technique references. Exact amperage and repair acceptance remain Unknown (Verify) until rod brand, diameter, machine output, base metal thickness, joint design, position, and WPS or inspection requirement are confirmed.
MIG wire shaving inside the liner is caused by mechanical damage to the wire before or during feed. The most common causes are too much drive-roll pressure, wrong drive-roll groove, worn or misaligned wire guides, wrong liner size, kinked gun cable, wrong contact tip, dirty or rusty wire, tight spool brake, and feeder alignment problems. The shavings pack into the liner, increase drag, make the arc stutter, cause drive-roll slipping, and often end in burnback at the contact tip.
Do not fix wire shaving by tightening the drive rolls. That usually makes the problem worse. Start by removing the contact tip, laying the gun cable straight, jogging wire slowly, and inspecting the wire immediately after the drive rolls. If the wire has flat spots, tooth marks, copper flakes, or scraped edges before it enters the liner, the feeder setup is damaging the wire. If the wire looks clean before the liner but drags inside the gun, inspect the liner, cable bends, and contact tip.
Common Symptoms
Symptom
Likely Cause
First Check
Copper dust or metal shavings near feeder
Excess drive tension, wrong groove, worn guides, or misalignment
Inspect wire after it leaves the rolls
Wire feed gets worse after a few minutes
Shavings are packing the liner and contact tip
Remove tip and jog wire with lead straight
Drive rolls slip or chirp
Downstream drag from dirty liner, wrong tip, or kinked cable
Check liner and contact tip before adding pressure
Burnback repeats after replacing tips
Wire slows from liner contamination or feed damage
Inspect liner dust and wire condition
Birdnesting at feeder
Wire path blocked downstream or spool overrun
Cut nest out and check tip, liner, and brake
Wire has flat spots
Drive-roll pressure too high or wrong roll type
Back off tension and verify groove type
Root Cause Analysis
The liner is not usually the first part that creates shavings. The shaving often starts at the drive rolls or wire guides, then the liner becomes the collection point. Once wire dust builds inside the liner, friction increases. The feeder responds by slipping, the operator tightens the tension, and the wire gets scraped harder. That cycle turns a small feed issue into repeated stutter, burnback, and liner replacement.
Turn off input power before touching feeder components.
Clip the wire clean and remove the contact tip.
Lay the MIG gun lead as straight as practical.
Open the feeder and confirm the wire is in the correct roll groove.
Verify the groove type: smooth V for many solid wires, U-groove for aluminum where specified, and knurled V for cored wire where specified.
Reduce drive-roll tension and reset it only after the wire path is clear.
Inspect the inlet guide and outlet guide for worn grooves, burrs, or offset alignment.
Jog wire slowly and watch for scraping before the wire enters the gun liner.
Main Causes of Wire Shaving Inside the Liner
Cause
What It Does
Correction
Drive-roll pressure too high
Flattens or cuts the wire and creates dust
Use the least pressure that feeds without slipping
Wrong groove size
Wire rides high, slips, or scrapes on roll edges
Install the groove that matches wire diameter
Wrong groove type
Soft wire crushes or cored wire slips/deforms
Match roll type to wire and feeder manual
Misaligned wire guides
Wire enters the roll or liner at an angle
Seat guides correctly and replace worn guides
Kinked or dirty liner
Drag increases until rolls scrape the wire
Replace liner and correct cable routing
Wrong contact tip
Tip drags wire and causes upstream slipping/shaving
Install correct tip size and gun family
Spool brake too tight
Feeder pulls harder and rolls dig into wire
Set brake to stop overrun without drag
Rusty or dirty wire
Surface contamination acts like abrasive inside liner
Use clean dry wire and protect spool storage
Inspection Steps
Look under the feeder rolls. Copper dust, steel dust, aluminum flakes, or flux powder means the wire is being damaged.
Release the pressure arm and pull wire by hand. Heavy drag with the tip removed points to liner, cable, or gun restriction.
Inspect the wire before it enters the liner. If it is already scratched or flattened, the feeder side is the source.
Check drive-roll groove edges. A sharp worn edge can peel wire coating or shave aluminum.
Inspect inlet and outlet guide tubes. A guide worn oval can push wire into the side of the groove.
Remove the contact tip. Replace it if the bore is oval, undersized, spatter-packed, loose, or overheated.
Remove the liner if shaving continues. Blow-out cleaning may identify dust, but a kinked or packed liner should be replaced.
Check the gun cable path. Tight loops, cart wheels, table corners, and unsupported long leads increase liner drag.
Test Procedures
Test
Procedure
Result Meaning
Roll-mark test
Jog wire, stop, and inspect marks after the drive rolls
Deep marks or flat spots mean pressure/groove problem
Tip-out feed test
Remove contact tip and jog wire
Feed improvement means contact tip or front-end restriction
Hand-pull test
Release rolls and pull wire through gun by hand
Heavy pull means liner or cable drag
Straight-lead test
Feed wire with cable straight, then with normal bends
Bend-sensitive feed points to liner or cable routing
Guide alignment test
Jog slowly and watch wire enter/exit roll groove
Side tracking means guide or roll alignment fault
Spool brake test
Jog and release trigger
Overrun or heavy drag requires brake adjustment
Visual Wear Indicators
Wire dust collects at the drive rolls, inlet guide, outlet guide, or feeder floor.
Wire is flattened, scratched, grooved, or has tooth marks after the rolls.
Drive-roll groove is polished on one side only.
Wire guide hole is oval, burred, sharp, or packed with debris.
Liner dumps copper dust, rust dust, aluminum flakes, or flux powder when removed.
Contact tip bore is oval, blackened, spatter-packed, or fused to wire.
Wire feed changes when the gun cable is bent.
Arc surges, pops, or burns back after a short amount of welding.
Compatibility Notes
Liners, contact tips, drive rolls, and guide tubes must be matched as a feed system. A liner that fits the gun may still be wrong for the wire diameter. A drive roll that fits the shaft may still be the wrong groove for the wire. A contact tip that matches wire diameter may still be wrong for the gun series. Do not order parts from wire size alone.
Aluminum wire is more likely to shave when the liner, guide, roll pressure, or gun length is wrong. Flux-cored wire can deform if the drive pressure or groove type is wrong. Solid steel wire can shave when pressure is excessive, guides are misaligned, the liner is rusty, or the contact tip is undersized. If the installed gun or feeder has been changed, verify the actual gun and feeder parts instead of ordering by welder model only.
What To Verify Before Ordering
Machine model, feeder model, code number, and serial number where available.
Installed gun model, connector style, amperage class, and cable length.
Wire type: solid steel, stainless, flux-cored, metal-cored, aluminum, or hardfacing.
Wire diameter and spool size.
Drive-roll kit number, groove type, and active groove size.
Inlet guide, outlet guide, intermediate guide, and conduit bushing requirements.
Liner size range, liner material, and trim procedure.
Contact tip series, thread, length, bore size, and tip material.
Spool brake setting and spool adapter condition.
Whether the application needs a push-pull gun, spool gun, shorter lead, or cable support.
Common Wrong-Part Mistakes
Replacing the liner without correcting the drive-roll pressure that filled it with shavings.
Using a liner that is too small for the wire diameter.
Using smooth V-groove rolls on wire that requires a different groove style.
Using too much knurled-roll pressure on flux-cored wire.
Feeding aluminum through a long standard steel-liner gun setup without verifying compatibility.
Installing a contact tip that matches diameter but not the gun family.
Leaving worn outlet guides in place after replacing drive rolls.
Increasing pressure to force wire through a blocked contact tip or dirty liner.
Field Fix vs Proper Fix
A field fix is to clean the feeder, replace the contact tip, straighten the gun cable, reduce drive-roll pressure, confirm the correct groove, and jog clean wire through the gun. If the liner is lightly contaminated, this may get a short job finished, but expect the problem to return if the liner is already packed with shavings.
The proper fix is to correct the source of shaving and replace contaminated wear parts. Install the correct drive rolls and guides, set pressure correctly, replace the liner, install the correct contact tip, correct spool brake tension, and reroute the gun cable. For aluminum or long-distance feeding, verify whether a spool gun, push-pull gun, soft liner, or shorter cable is required.
Related Failure Paths
MIG wire shaving inside the liner connects directly to wire feed slipping, feed stutter, birdnesting, burnback, contact tip overheating, diffuser clogging, liner wear, aluminum feed problems, flux-cored wire deformation, and inconsistent bead shape. Fix the wire path first. Settings changes cannot correct wire that is being scraped before it reaches the arc.
Safety Notes
Disconnect input power before removing drive rolls, guides, liner, or gun components.
Keep fingers, gloves, and sleeves away from drive rolls while jogging wire.
Wear eye protection when clipping wire, clearing birdnests, or blowing debris from components.
Do not pull damaged wire back through the liner if it can score or pack the liner further.
MIG drive roll alignment problems show up as wire shaving, slipping, chirping, birdnesting, flat spots on the wire, uneven arc sound, burnback, and feed that improves only when the gun cable is straight. The drive rolls must line up with the inlet guide, outlet guide, liner, and wire path. If the wire enters the groove at an angle, rides on the edge of the roll, or rubs a guide tube, the feeder may still turn but the wire will not feed cleanly.
Start by turning the machine off, opening the feeder, confirming the correct groove for the wire type and diameter, and checking whether the wire tracks through the center of the groove into the outlet guide. Do not solve alignment problems by adding more drive pressure. Too much pressure can crush wire, create shavings, pack the liner with debris, and make slipping or burnback worse.
Common Symptoms
Symptom
Likely Cause
First Check
Wire shavings near drive rolls
Wrong groove, excess pressure, worn guide, or misalignment
Inspect roll groove and guide tube position
Wire slips while rolls turn
Downstream drag, wrong groove size, worn rolls, or poor tension
Remove contact tip and jog wire
Wire has flat spots or deep tooth marks
Drive pressure too high or wrong roll type
Reset pressure after confirming wire path
Wire birdnests after the rolls
Outlet guide, liner, contact tip, or gun cable restriction
Check outlet guide and liner seating
Arc surges or pops mid-bead
Actual wire speed at arc is inconsistent
Test feed with gun lead straight
Wire jumps out of groove
Roll not seated, guide misaligned, wire spool drag, or wrong groove
Confirm roll installation and guide spacing
Root Cause Analysis
The feeder is only one part of the wire path. Wire must leave the spool, pass through the inlet guide, sit in the correct drive-roll groove, pass into the outlet guide, enter the gun liner, and exit through the contact tip. Any offset between those parts creates side loading. Side loading shaves wire, increases drag, and causes the rolls to slip or deform the wire.
Drive roll alignment issues often overlap with MIG wire feed slipping, MIG wire feed stuttering, MIG burnback, and birdnesting. If the wire is being scraped or flattened at the feeder, fix that before changing voltage or wire-feed speed.
Quick Checks Before Replacing Parts
Turn off input power before touching drive rolls, guide tubes, or feeder internals.
Verify wire diameter and type: solid steel, stainless, flux-cored, metal-cored, aluminum, or hardfacing.
Confirm the active groove matches the wire diameter and wire type.
Check that the drive roll is fully seated on the shaft and installed in the correct orientation.
Confirm the inlet guide and outlet guide are close to the rolls but not rubbing them.
Look straight through the wire path. The wire should not angle sharply into or out of the roll groove.
Back off drive pressure and reset it only after the path is clean and aligned.
Remove the contact tip and jog wire to separate feeder trouble from gun-tip restriction.
Drive Roll Groove Selection
Alignment cannot be corrected if the wrong roll is installed. Solid steel wire usually runs in a smooth V-groove. Aluminum commonly uses a U-groove or soft-wire setup. Flux-cored wire often uses a knurled V-groove where specified by the feeder manufacturer. Some rolls have two grooves, and the wire-size marking or active side must match the machine design. On many feeders, the size facing outward identifies the groove in use, but always verify against the feeder manual or parts guide.
If the groove is too small, the wire rides high and may shave. If the groove is too large, the rolls may not grip consistently. If the roll type is wrong, the feeder may crush soft wire or fail to pull cored wire through the gun. Correct groove, correct guide tubes, and correct pressure work together.
Inspection Steps
Open the feeder and remove loose wire dust with shop-approved cleaning methods.
Inspect drive-roll grooves for packed copper dust, steel shavings, flux dust, worn edges, chips, or grooves worn shiny on one side.
Check inlet guide and outlet guide tips. A worn oval guide can push wire sideways into the roll.
Confirm guide tubes are installed in the correct position and pushed in to the proper depth.
Check the idle roll arm for loose pivots, uneven pressure, bent hardware, or damaged bearings.
Check the drive roll shaft for wobble, dirt behind the roll, missing key, missing screw, or incorrect spacer.
Feed wire slowly and watch whether it tracks through the middle of the groove.
Inspect the wire after the rolls. Deep marks, flat spots, or shaving mean the setup is still wrong.
Test Procedures
Test
Procedure
Result Meaning
Tip-out feed test
Remove contact tip and jog wire
Smooth feed points to contact tip or front-end restriction
Hand-pull test
Release rolls and pull wire through the gun by hand
Heavy drag points to liner, cable, or tip path
Roll-track test
Jog wire slowly with feeder open
Wire should stay centered in groove and guides
Roll-mark test
Inspect wire after it passes through the rolls
Deep marks mean excess pressure or wrong groove
Spool brake test
Jog and release trigger
Overrun causes loops; too much brake causes feed drag
Wood-block pressure test
Feed wire against wood per shop practice
Pressure should feed reliably without crushing wire
Visual Wear Indicators
Metal dust, copper flakes, or flux powder below the drive rolls.
Wire tracks on one edge of the groove instead of the center.
Wire enters the outlet guide at an angle.
Guide tube end is grooved, oval, sharp, or packed with debris.
Drive roll groove is polished unevenly or worn wider than the wire.
Idle roll bearing feels rough or does not rotate freely.
Wire has flat spots, tooth marks, shaving, or corkscrew damage.
Wire feed improves when pressure is increased, then gets worse after a short time because debris builds in the liner.
Compatibility Notes
Drive rolls, guide tubes, and liners are feeder-specific. Do not order by wire size only. A .035 in solid-wire roll for one feeder may not fit another feeder, and a .035 in smooth V-groove roll is not the same setup as a .035 in knurled cored-wire roll or a .035 in U-groove aluminum roll. Four-roll feeders, two-roll feeders, portable suitcase feeders, compact MIG machines, push-pull systems, and robotic feeders may use different roll kits and guide parts.
If the machine has a code number, serial number, or feeder model tag, use it. If the feeder was replaced or modified, order by the installed feeder drive system, not just the power source model. If the wire has been changed from solid to flux-cored or aluminum, verify drive roll, guide, liner, and contact tip compatibility as a complete feed system.
What To Verify Before Ordering
Machine model, feeder model, code number, and serial number where available.
Two-roll or four-roll drive system.
Wire diameter and wire type.
Drive roll kit number, groove type, and active groove size.
Incoming guide, outgoing guide, intermediate guide, and conduit bushing part requirements.
Gun model, liner size range, and cable length.
Contact tip size and contact tip family.
Spool size, spool adapter, and brake setup.
Whether the feeder is standard MIG, flux-cored, aluminum, push-pull, or robotic service.
Common Wrong-Part Mistakes
Buying drive rolls by wire size without matching feeder model.
Using smooth V-groove rolls on cored wire when the feeder calls for knurled rolls.
Using knurled rolls on soft wire and crushing it.
Installing the roll backward so the wrong groove is active.
Leaving out the inner or outer guide that belongs with the roll kit.
Replacing drive rolls but keeping worn guide tubes.
Increasing pressure to overcome a kinked liner or clogged contact tip.
Changing wire diameter without changing tip, liner, roll groove, and guides.
Field Fix vs Proper Fix
A field fix is to clean the drive area, install the correct groove, align the guide tubes, remove the contact tip, straighten the gun lead, and reset drive pressure to the minimum that feeds reliably. This can confirm whether the feeder will run, but it does not repair worn roll shafts, damaged idle arms, bent guides, or a liner packed with shavings.
The proper fix is to rebuild the feed path as a system: correct drive roll kit, correct guide tubes, clean spool brake, correct liner, correct contact tip, straight gun cable routing, and verified drive pressure. If the wire still tracks off-center with correct parts installed, inspect the feeder housing, motor shaft, roll carrier, and idle-arm hardware before replacing the motor.
Related Failure Paths
Drive roll alignment problems connect to wire feed slipping, wire stutter, birdnesting, burnback, contact tip overheating, liner contamination, flux-cored wire crushing, aluminum wire shaving, poor starts, and inconsistent bead shape. Correct the mechanical feed path first, then tune voltage and wire-feed speed only after the wire feeds smoothly.
Safety Notes
Disconnect input power before servicing feeder internals.
Keep fingers, gloves, sleeves, and tools clear of drive rolls while jogging wire.
Wear eye protection when clipping wire or clearing birdnests.
Do not pull a birdnest through the liner or contact tip.
