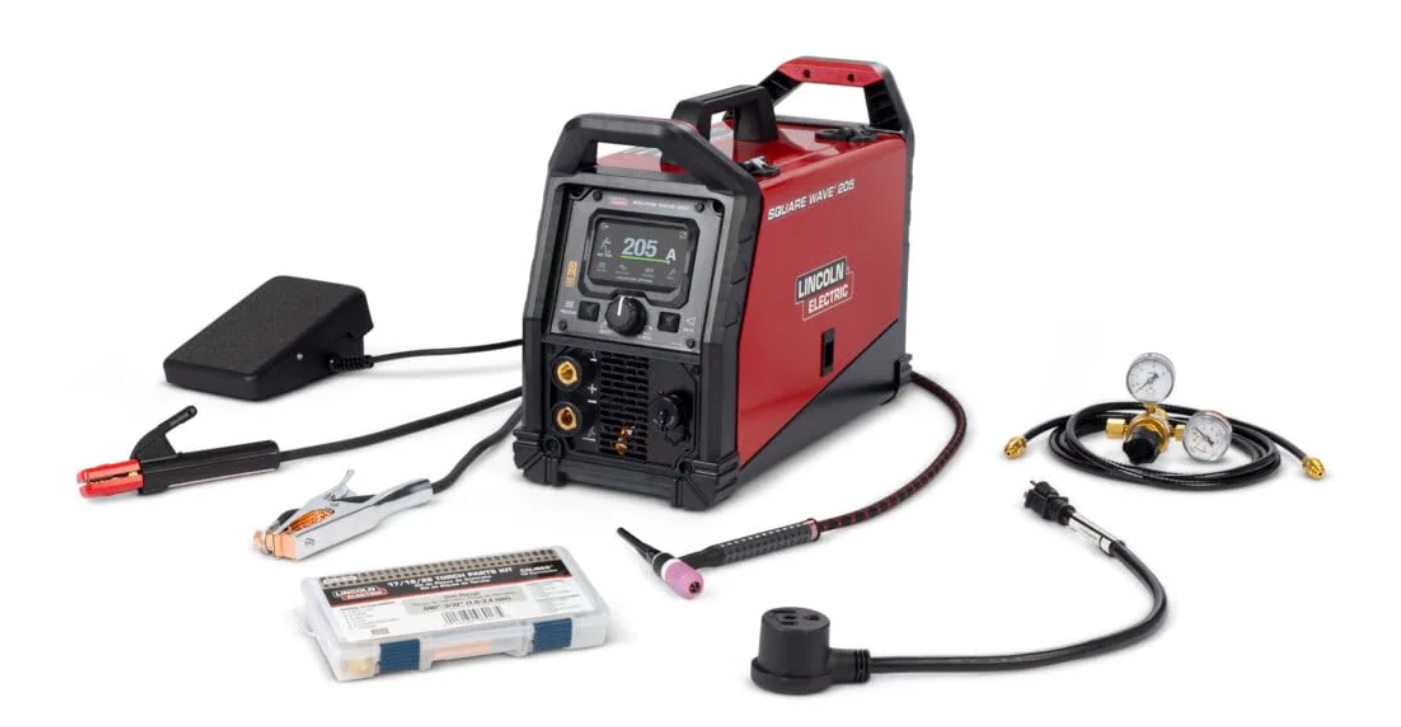

The Lincoln Electric Square Wave® 205 TIG Welder K5613-1 is a dual-voltage AC/DC TIG and AC/DC Stick welding power source built for aluminum TIG work, steel and stainless TIG work, and Stick welding applications where portability matters. This guide helps buyers verify the machine, included components, input power, torch family, consumables, and accessory needs before ordering from Arc Weld Store.
View this product at Arc Weld Store
Key Takeaways
- Model: Lincoln Electric Square Wave® 205 TIG Welder
- SKU / product number: K5613-1
- Processes: AC/DC TIG and AC/DC Stick
- Input power: 120V or 230V, single phase, 60 Hz
- Best fit: aluminum TIG, steel TIG, stainless TIG, Stick welding, light fabrication, education, motorsports, and shop repair
- Included torch family: Caliber® 17 TIG Torch Ready-Pak®; verify all front-end consumables before reordering
- Do not assume consumable compatibility by welder model alone; confirm torch series, tungsten size, cup style, and gas lens setup before ordering accessories
Product Overview
The Lincoln Electric Square Wave® 205 K5613-1 is a compact AC/DC TIG and Stick welder for buyers who need TIG control for aluminum and DC TIG performance for steel or stainless. Lincoln lists the machine with pulse, AC frequency, and AC balance controls, plus a 4.3 in. LCD display for setup and parameter changes.
Arc Weld Store lists this item as the Lincoln Electric Square Wave® 205 TIG Welder K5613-1. Because the original product handle contains a special trademark character, this article uses a clean Arc Weld Store SKU-search link for K5613-1 to avoid broken blog links.
Upper-middle CTA: Check current stock at Arc Weld Store
Best For
- AC TIG welding on aluminum
- DC TIG welding on steel and stainless steel
- Light fabrication and repair work
- Motorsports, maker, education, and small-shop welding stations
- Buyers who want TIG and Stick capability from one portable machine
- Work areas where 120V convenience and 230V maximum output capability are useful
Key Specs
| Product name | Lincoln Electric Square Wave® 205 TIG Welder |
| SKU / product number | K5613-1 |
| Brand | Lincoln Electric |
| Processes | AC/DC TIG, AC/DC Stick |
| Input power | 120/1/60 or 230/1/60 |
| 120V TIG rated output | 125A/25%; 100A/60%; 85A/100% |
| 120V DC Stick rated output | 80A/25%; 70A/60%; 65A/100% |
| 120V AC Stick rated output | 70A/100% |
| 120V TIG output range | 8–125A |
| 120V DC Stick output range | 15–90A |
| 120V AC Stick output range | 15–70A |
| 230V TIG rated output | 205A/25%; 160A/60%; 130A/100% |
| 230V DC Stick rated output | 170A/25%; 130A/60%; 100A/100% |
| 230V AC Stick rated output | 140A/25%; 115A/60%; 100A/100% |
| 230V TIG output range | 8–205A |
| 230V DC Stick output range | 15–170A |
| 230V AC Stick output range | 15–140A |
| Dimensions | 14.75 x 9.27 x 21 in. / 375 x 235 x 534 mm |
| Net weight | 36 lb / 16.33 kg |
| Display | 4.3 in. LCD display |
| Ingress rating | IP21S |
| Price | Verify current price at Arc Weld Store |
| Stock status | Unknown (Verify) |
Compatibility / Fitment Notes
This is a complete welder package, not a replacement board, torch-only item, or consumable kit. The main fitment questions are input power, process requirement, torch family, remote connector needs, cable length, and consumable selection.
- Machine fit: Verify that K5613-1 is the correct Lincoln Electric Square Wave® 205 package before ordering.
- Power fit: Confirm your available input power is 120V or 230V single phase, 60 Hz.
- Maximum output: Use 230V input when maximum TIG and Stick output is required.
- Torch fit: The package includes a Caliber® 17 TIG Torch Ready-Pak®. Consumables should be selected for the actual torch series and setup, not only by welder model.
- Remote fit: The included Foot Amptrol is K870. Verify replacement remote controls by Lincoln part number and connector style.
- Gas fit: TIG shielding gas and cylinder connection requirements must be verified for the application. Shielding gas is not confirmed as included.
- Stick fit: Confirm electrode type, amperage demand, and AC/DC Stick requirements before assuming the machine is the right fit for production work.
Before You Order
Use this checklist to reduce wrong-machine, wrong-consumable, and wrong-accessory orders.
- Confirm the product number: K5613-1.
- Confirm your available input voltage: 120V or 230V.
- Confirm whether your work requires AC TIG, DC TIG, AC Stick, DC Stick, or multiple processes.
- Confirm duty cycle needs against your weld schedule.
- Confirm maximum required amperage for TIG and Stick work.
- Confirm the included torch series before buying cups, collets, gas lenses, or tungsten.
- Confirm tungsten diameter and tungsten type for your weld procedure.
- Confirm shielding gas requirements for the base metal and process.
- Confirm whether a foot control or hand control is preferred for the work area.
- Confirm cable length requirements for the welding station.
- Confirm whether additional PPE, work clamp setup, welding table, cart, or cylinder handling equipment is needed.
- Confirm any replacement accessory by OEM number before ordering.
Accessories / Compatible Products
The Square Wave® 205 package includes core TIG and Stick setup components, but most users should still plan for consumables, tungsten, PPE, and gas handling items. Compatibility must be verified by torch series, tungsten size, cup style, connector style, and application.
| Accessory group | Why it matters | Compatibility note |
|---|---|---|
| TIG consumables | Cups, collets, collet bodies, gas lenses, and front-end parts are wear items. | Compatibility: Verify against Caliber® 17 / 17-18-26 family and tungsten size. |
| Tungsten | Required for TIG welding; size and type depend on amperage and material. | Compatibility: Unknown (Verify) |
| TIG torches | Useful if replacing the included torch or changing torch size. | Compatibility: Verify torch series, amperage rating, connector, and cable length. |
| Gas regulation | Needed for shielding gas delivery and flow control. | Compatibility: Verify gas type, cylinder connection, and flow range. |
| PPE | Helmet, gloves, jacket, sleeves, and eye protection support safer welding operations. | Compatibility: Select by process, heat exposure, and shop requirements. |
Related Arc Weld Store links:
- View related TIG consumables at Arc Weld Store
- View tungsten options at Arc Weld Store
- View TIG torches at Arc Weld Store
- View gas regulation products at Arc Weld Store
Common Applications
- AC TIG welding on aluminum
- DC TIG welding on steel
- DC TIG welding on stainless steel
- Stick welding for repair and outdoor work
- Light fabrication and maintenance welding
- Motorsports fabrication
- Education and training labs
- Maker and small-shop welding stations
Shipping / Returns Notes
Arc Weld Store lists this product as shipping from Corydon, Indiana. Verify current stock, lead time, shipping eligibility, pickup availability, and return requirements before opening or installing the product. Returns should be confirmed before use because welding machines and accessories may need to remain unused and in original packaging to qualify.
FAQ
Is the Lincoln Square Wave® 205 K5613-1 for TIG only?
No. Lincoln lists the Square Wave® 205 for AC/DC TIG and AC/DC Stick welding.
Can this welder run on both 120V and 230V?
Yes. Lincoln lists input power as 120/1/60 and 230/1/60. Use 230V input when the higher output range is required.
What torch is included with K5613-1?
Lincoln lists the included TIG torch as the Caliber® 17 TIG Torch Ready-Pak® – 12 ft. K5339-17F-1. Verify the actual torch and consumable family before ordering spare front-end parts.
Are TIG consumables included?
Lincoln lists a Caliber 17/18/26 Series Medium Duty TIG Torch Parts Kit KP4760-MD as included. Verify the contents and required tungsten sizes before placing a consumable order.
Does this package include shielding gas?
Shielding gas is not verified as included. Confirm gas cylinder, gas type, and regulator requirements before welding.
Why does this article use a search link instead of the original product handle?
The original product URL contains a special trademark character in the handle. The SKU-search link avoids that character and helps prevent broken blog links while still directing buyers to the K5613-1 product result at Arc Weld Store.
What should I verify before buying replacement parts?
Verify the machine model, OEM part number, torch series, connector style, cable length, tungsten size, cup style, gas lens setup, and process requirements before ordering.
Safety Notes
Follow the Lincoln Electric operator manual and all workplace welding safety requirements before installation or use. Confirm electrical input, grounding, shielding gas handling, PPE, ventilation, hot-work controls, and fire-watch requirements for the work area. Welding equipment should be installed and operated only by trained personnel.
Sources Checked
- Arc Weld Store product page for Lincoln Electric Square Wave® 205 TIG Welder K5613-1
- Lincoln Electric Square Wave® 205 product information
- Lincoln Electric Square Wave® 205 specification sheet, publication E3.220, issue date 05/25
