Lincoln Electric Square Wave 205: Specifications and Buyer Checks

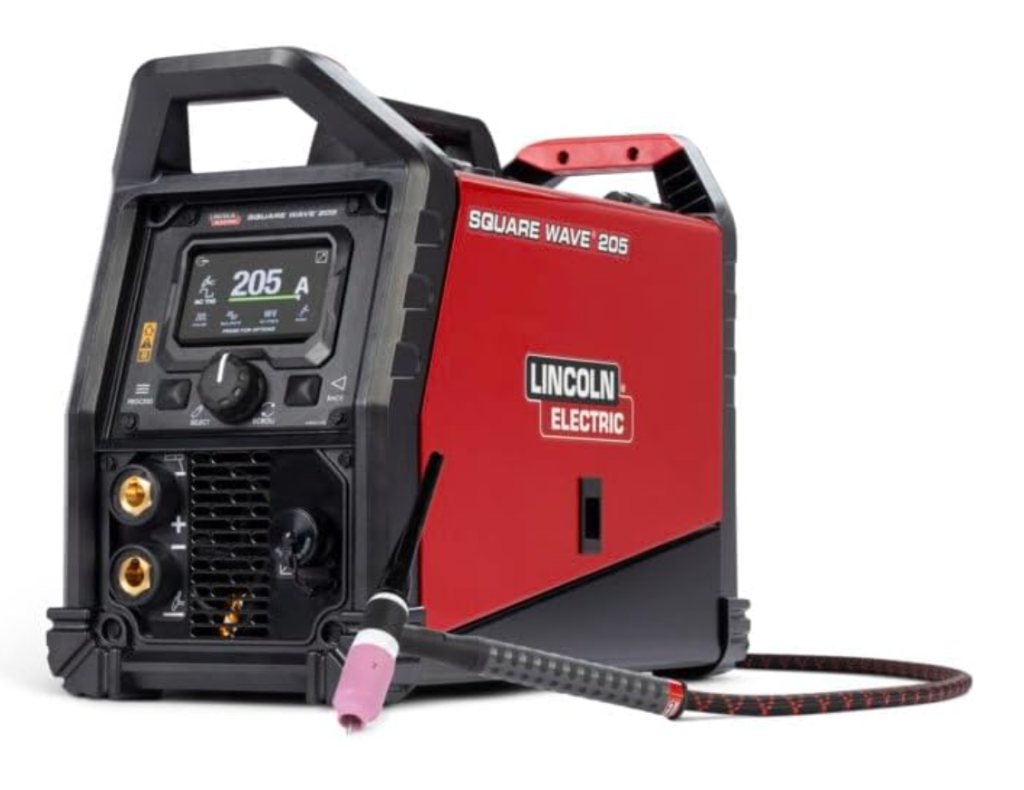

The Lincoln Electric Square Wave 205 (K5613-1) is an AC/DC TIG and Stick machine with 120/230-volt input. Its available output depends on the input supply and process. This is a manufacturer-specification buyer guide, not a hands-on test or a report of customer results.

Overview of the Lincoln Electric Square Wave 205

For the K5613-1 model, Lincoln lists a maximum TIG output of 205 amps on 230-volt input. Do not assume that output is available from a 120-volt receptacle; check the rated output, duty cycle, and input-circuit requirements for your intended setup.

• Processes: TIG (AC/DC) and Stick
• Input Power: 120V/230V
• Maximum TIG output: 205A on 230V; consult the specification table for other modes and input supplies.
• Machine weight: 36 lb (16.3 kg), per Lincoln’s K5613-1 specification.
• Warranty: 3 years

Key Features and Benefits

1. Versatile Welding Capabilities

The Square Wave 205 excels in both AC and DC TIG welding, allowing users to weld a variety of metals. AC TIG is ideal for aluminum, while DC TIG is perfect for steel, stainless steel, and chrome-moly. The machine also supports Stick welding, making it a flexible choice for different project requirements.

2. User-Friendly Interface

One of the standout features is its intuitive control panel. The digital display and simple knob adjustments make it easy for beginners to set up, while advanced users can fine-tune parameters such as AC frequency and balance for precise control.

3. Portability and Build Quality

The published machine weight is 36 lb. Include the torch, leads, gas cylinder, and transport arrangement when judging the weight of the complete working setup.

4. Advanced TIG Features

• Pulse Mode: Helps control heat input, reducing warping and improving weld appearance.
• AC Frequency Control: Allows for a tighter or wider arc, enhancing performance on aluminum.
• AC Balance Control: Adjusts cleaning action versus penetration for optimal results.

Check your actual job requirements

A useful pre-purchase check is to write down the material, joint, expected current, available input circuit, and length of each weld. Compare that job profile with the manufacturer’s ratings. No productivity improvement or independent test result is established by this guide.

Ask a dealer for a demonstration on a representative job if arc behavior or setup speed will determine your purchase. This guide does not substitute for that trial.

Pros and Cons

• Pros:
  • AC/DC TIG and Stick capability in one machine
  • Easy to use for beginners and professionals
  • Lightweight and portable
  • Dual voltage for flexible operation
  • Advanced TIG controls for precise welding
• Cons:
  • Slightly higher price point compared to entry-level models
  • Output and duty-cycle limits vary by input supply and process

Who Should Buy the Square Wave 205?

The Square Wave 205 is ideal for:

• Hobbyists and DIY enthusiasts seeking a reliable, easy-to-use welder
• Small fabrication shops that need versatility for different metals
• Automotive repair professionals working with aluminum and steel
• Contractors requiring portability and dual-voltage capability

It may not be the best fit for large-scale industrial operations that require higher amperage or continuous heavy-duty use.

Conclusion: Is the Lincoln Electric Square Wave 205 Worth It?

The Square Wave 205 is worth considering when its process range, input requirements, and duty cycle match your work. Check the included accessories and exact model before comparing prices. There is no single best welder for every shop.

Before buying, keep a copy of the current specification and list anything needed beyond the package. That gives you a more useful comparison than headline amperage alone.

Last update on 2026-10-20 / Affiliate links / Images from Amazon Product Advertising API

This post contains affiliate links. If you purchase items through these links, we may earn a small commission at no extra cost to you. This helps support our website and allows us to continue providing quality content. Thanks for your support!

Keep the details for your next job

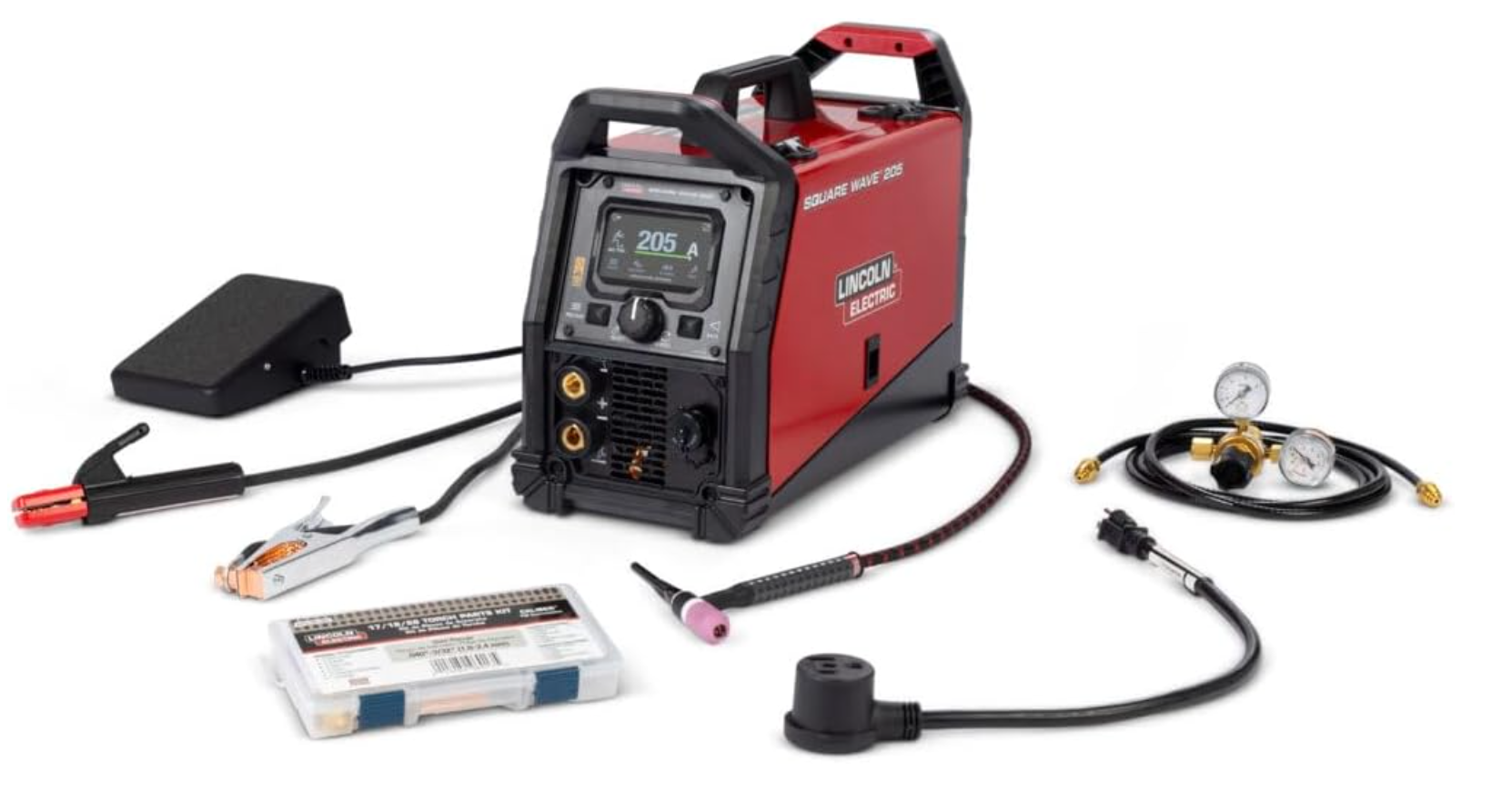

List the machine, torch, foot control, gas equipment, leads, and electrical-supply requirements on one sheet. Compare the included package with that list before deciding the total setup cost.
