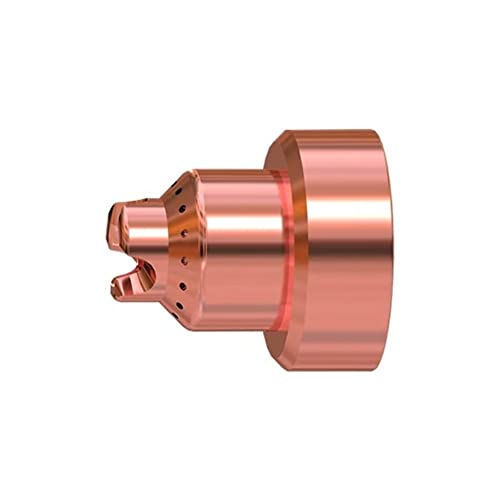

Hypertherm 220992 is a Duramax handheld drag-cutting shield for the 85–105 A range, and it belongs in a specific consumable stack—not every Duramax setup. Before ordering, confirm the torch, amperage range, process, and the rest of the stack. A part number match is stronger evidence than a photo match.
What Hypertherm 220992 is
Hypertherm identifies part 220992 as a handheld Duramax shield with an operating range of 85–105 A for drag cutting. On Hypertherm’s Powermax105 consumables information, 220992 appears in the legacy five-piece stack with retaining cap 220854, nozzle 220990, electrode 220842, and swirl ring 220994. Hypertherm also shows the current 105 A cartridge path separately, which matters because cartridge and legacy-stack components should not be mixed by appearance.
The ordering question: do you need this shield or a cartridge?
The useful question is not simply, “Does 220992 fit a Powermax105?” Hypertherm’s current documentation shows both the older consumable stack and cartridge conversion paths. If your torch has already been converted to the cartridge platform, ordering 220992 for the front end would be the wrong direction. If you still have the legacy Duramax stack and the process calls for this shield, 220992 is the part number to verify.
- Confirm the exact torch family: Duramax handheld versus another Hypertherm torch.
- Confirm whether the torch is still using the legacy five-piece consumable stack.
- Confirm the cutting process and amperage range. Hypertherm lists 220992 for 85–105 A drag cutting.
- Compare the remaining stack part numbers before assuming the shield alone is the only worn component.
Why the stack matters
A plasma consumable stack works as a system. The shield, retaining cap, nozzle, electrode, and swirl ring have different jobs, and the correct combination depends on the torch and process. When a shield is damaged, operators often inspect the nozzle and electrode at the same time because wear or contamination elsewhere in the stack can affect cut performance. That does not mean every rough cut is caused by a bad shield; air quality, consumable wear, torch height, amperage, travel speed, and workpiece condition can all matter.
What to inspect before ordering
- Part number: verify 220992, not a similar-looking shield.
- Torch front end: identify whether you have the legacy Duramax stack or a cartridge adapter/conversion.
- Process: Hypertherm lists 220992 under handheld drag cutting.
- Current range: Hypertherm lists 85–105 A for this shield.
- Condition: inspect the retaining cap, nozzle, electrode, and swirl ring for damage or wear according to the system manual.
Current Arc Weld availability
At the time this guide was prepared, Arc Weld Inc. showed the exact Hypertherm 220992 product as active with inventory available. Inventory changes, so use the live product page for the current quantity and selling unit rather than relying on a number printed in an article.
Check Hypertherm 220992 at Arc Weld Inc.
Compatibility limits
Do not treat “Duramax” as a universal fit statement. Hypertherm has multiple system generations, torch styles, consumable processes, and conversion paths. The exact torch and consumable stack control fitment. If the torch model or existing part numbers do not match the Hypertherm documentation, stop and verify before ordering.
Bottom line
Hypertherm 220992 is a specific 85–105 A handheld drag-cutting shield in the legacy Duramax consumable path. It is a good ordering choice only when your torch, process, and stack match that application. Verify the torch first, then the surrounding consumables, then the part number.
