  • YESWELDER BWX-01 Welding Rod Oven Review (2025): Keep Your Electrodes Dry and Ready

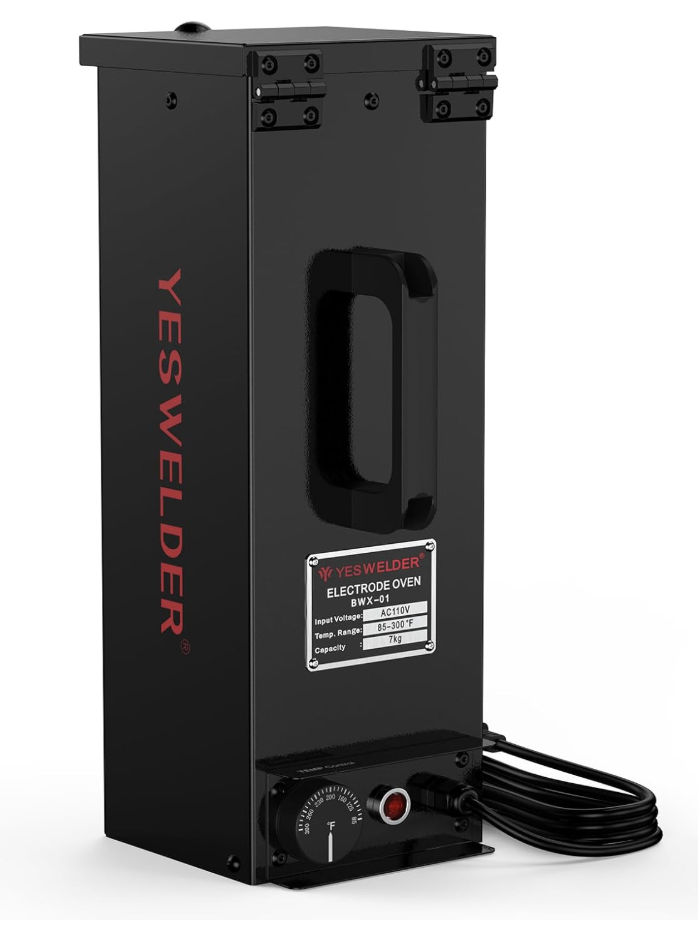

    YESWELDER BWX-01 Welding Rod Oven Review (2025): Keep Your Electrodes Dry and Ready

    Quick Look

    YESWELDER’s BWX-01 110 V rod oven protects stick electrodes from moisture pickup — a common cause of porosity and hydrogen cracking. With a 15 lb capacity and adjustable thermostat, it’s built for portable field work and shop maintenance alike.

    Key Takeaways

    • Voltage: 110 V AC power
    • Temperature range: 85 °F – 300 °F adjustable
    • Capacity: Holds up to 15 lb of 15-in. or shorter rods
    • Weight: Under 8 lb (portable aluminum housing)
    • Purpose: Keeps low-hydrogen and general electrodes moisture-free

    Performance and Use

    The BWX-01 maintains a steady internal temperature to prevent flux moisture absorption — critical for E7018 and other low-hydrogen rods. Its insulated canister warms evenly, reducing hydrogen-induced cracking and maintaining clean arc starts. The light weight and side handle make it easy to move between stations or field sites.

    Ideal for welding schools, fabrication shops, and on-site pipe or structural crews needing reliable storage between weld passes.

    In-Box / Not Included

    Included:

    • BWX-01 rod oven
    • Power cord (110 V plug)
    • Adjustable temperature control

    Not Included:

    • Rods/electrodes
    • Extension cord

    Applications

    • Stick welding rod storage (E7018, E6010, E6011, etc.)
    • Shop and field maintenance
    • Moisture control before critical code welds

    Comparison Table

    ModelCapacity / Temp RangeBest ForAmazon
    YESWELDER BWX-0115 lb • 85–300 °F • 110 VPortable rod storageSee on Amazon

    Safety Notes

    Follow AWS A5.1 and A5.5 storage guidelines for low-hydrogen electrodes. Keep oven on a stable, dry surface and disconnect power before moving. Do not exceed 300 °F to prevent flux degradation.

    FAQ

    Q: Can it handle 7018 rods?
    Yes — that’s its main purpose. It maintains low hydrogen levels for 7018 and similar electrodes.

    Q: Is the temperature controlled automatically?
    It’s manual via dial control, allowing fine adjustment between 85 °F – 300 °F.

    Q: How many rods fit inside?
    Roughly 10-15 lb depending on diameter and length (up to 15 in.).

    No products found.

    Where to Buy

    Amazon: YESWELDER BWX-01 15 lb Portable Welding Rod Oven

    We may earn a commission on purchases made through our links, at no extra cost to you.

  • ARCCAPTAIN iControl TIG 205 Pro Review (2025): Compact 5-in-1 Powerhouse for TIG and Stick

    ARCCAPTAIN iControl TIG 205 Pro Review (2025): Compact 5-in-1 Powerhouse for TIG and Stick

    Intro
    ARCCAPTAIN’s iControl TIG 205 Pro brings premium control features into an affordable dual-voltage package. Designed for small shops and mobile welders, it handles TIG, Stick, and Cold-Spot functions in one digital unit—with precise arc settings usually found in higher-end models.

    Key Takeaways

    • Processes: TIG / Stick / Cold Spot / Arc Force / Anti-Stick (5-in-1).
    • Power Input: 120 V / 240 V dual-voltage inverter.
    • Output Range: 10 – 205 A (DC).
    • Control Modes: 2T / 4T trigger logic, digital LED interface.
    • Features: Hot Start, Arc Force tuning, Anti-Stick protection, memory presets.

    Performance and Ease of Use

    The iControl 205 Pro’s digital panel simplifies setup—arc current, slope, and post-flow are adjusted with a large LED dial. On 240 V it outputs a stable arc up to 205 A, enough for 3/16-in (4.8 mm) steel TIG work or 1/8-in (3.2 mm) stick electrodes. Hot-Start and Arc Force help keep restarts smooth, and Cold-Spot mode limits heat for sheet-metal or auto-body applications.

    Applications

    • Precision fabrication and light manufacturing
    • TIG training and field repair
    • Auto body and thin-sheet work
    • Shop projects requiring portable multi-process control

    Comparison Table

    ModelKey SpecsBest ForAmazon
    ARCCAPTAIN iControl TIG 205 Pro120 / 240 V • 10–205 A • TIG / Stick / Cold Spot • 2T / 4T • LED DisplayTIG and Stick fabrication • shop & field projectsSee Price on Amazon

    Safety Notes

    Confirm PPE meets ANSI Z87.1 and NFPA 51B. Keep work leads tight, inspect cables for heat damage, and never TIG weld on painted or galvanized surfaces without ventilation. Use dry gloves and ground work clamps directly to clean metal.

    FAQ

    Q: Does the iControl 205 Pro support AC TIG for aluminum?
    A: No — this model is DC only; for aluminum TIG use ARCCAPTAIN’s AC/DC version.

    Q: Can I run it on a standard 120 V outlet?
    A: Yes, at reduced amperage (typically ≤ 130 A). Full output requires 240 V.

    Q: Is Cold Spot just pulse TIG?
    A: It’s a short-duration arc feature that limits heat input for thin metals—useful for auto body or spot repairs.

    Q: Is a TIG torch included?
    A: Yes, standard 17-series torch plus ground clamp and electrode holder are included. Argon regulator sold separately.

    Where to Buy

    Amazon: ARCCAPTAIN iControl TIG 205 Pro 5-in-1 Welder
    Disclosure: We may earn a small commission at no extra cost to you. Eligible for ARCCAPTAIN Creator bonus commission.
