Introduction

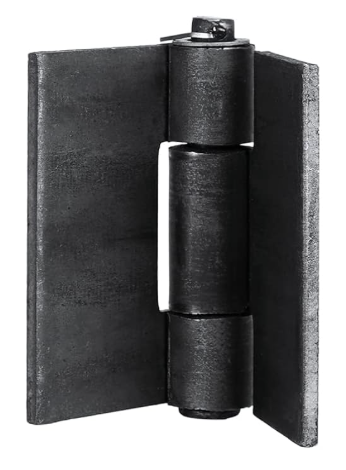

For gate builders and fabricators, weld-on hinges are one of those components you judge fast: poor steel, sloppy tolerances, or thin leaf thickness will telegraph problems the first time the gate cycles. This 6-pack of 4-3/8″ × 4-1/8″ heavy-duty weldable hinges (ASIN B0BRY9P7D8) is built around a solid-steel butt-hinge design with 5 mm leaf thickness, supporting gates, shop doors, and fabricated panels that need real load capacity.
Below, we break down the specs, where these hinges make sense, and what to check before you buy.
Key Takeaways
- Dimensions: 4-3/8″ high × 4-1/8″ wide (standard weld-on butt hinge footprint).
- Thickness: 5 mm solid-steel leaves (stout for this class).
- Design: Weld-on plates + center knuckle pin; no fasteners required.
- Use Cases: Heavy gates, fabricated steel doors, shop partitions, custom frames.
- Resistance: Marketed as corrosion & rust-resistant (finish unknown — verify).
- Pack Size: 6 hinges per set (good for 2–3 projects depending on load).
- Amazon-only availability: ASIN B0BRY9P7D8.
Problems These Hinges Solve
Hinges bending or wearing out under load
Light hardware-store weld-on hinges can taco fast on gates that see real force. A 5 mm-thick hinge leaf resists distortion during repeated swing cycles and occasional impacts (wind, animals, equipment bumps).
Sloppy swing or misalignment
A solid-steel knuckle + thick leaves reduce slop and lateral movement. That means doors and gates track straighter, bind less, and don’t “fall” over time if welded correctly on square frames.
Difficult mounting with traditional screw-on hinges
When you’re working with tube steel, angle iron, or structural frames, screw-mounted hinges are a no-go. Weld-on hinges simplify alignment and attachment, especially for fabricated gate frames or shop-built security doors.
Corrosion exposure
While the listing claims corrosion & rust resistance, finish type is unknown. Plan to prime and paint after welding for maximum protection if the hinge will live outdoors.
Choosing the Right Weld-On Hinge
Check load direction & hinge count
Heavier doors often need 3 hinges, not 2.
Loads increase further if the gate is:
- 6 ft+ wide
- Sheet-skinned
- Exposed to high wind
- Mounted on square-tube frames
Without manufacturer load ratings, oversizing is smart.
Confirm leaf thickness & weld area
5 mm (~0.197″) is solid. Thicker is better for torsion and weight.
Ensure your mounting surface offers enough weld area for full penetration.
Verify pin diameter & knuckle quality
Amazon listing does not state pin diameter (Unknown – verify).
A thicker pin = smoother operation + longer life.
Check for:
- End caps or grease channels
- Proper knuckle spacing
- Even cylinder alignment
Environment considerations
Outdoors? Prime + topcoat.
High-corrosion environments? Consider stainless or greaseable hinges.
Compatibility with tube steel
These butt-style hinges weld cleanly to:
- 2×2
- 2×3
- 1.5×1.5
- Angle frames
- Channel frames
Match hinge length to frame height for better load distribution.
Comparison Table
| Model | Key Specs | Best For |
|---|---|---|
| 6 Pack Metals Weld-On Hinges (ASIN B0BRY9P7D8) | 4-3/8″×4-1/8″; 5 mm steel; weld-on; 6-pack; corrosion-resistant (finish unknown) | Heavy DIY gates, farm gates, fabricated doors, shop partitions |
| National Hardware N343-475 | 4″ weld-on; steel; grease fitting; known brand | Repeated high-cycle gates |
| Hillman Weldable Hinge | 3½” & 4″; light/medium duty | Light gates, tool cabinet doors |
Where to Buy
- Metals 4″ Heavy Duty Weldable Hinges, made of good quality steel, durable, sturdy, and long-lasting use
- Weldable Door Hinges Size: 4-3/8 x 4-1/8 inches (110 x 105 mm), Thickness: 5 mm
- Heavy duty weldable hinges, max load 500 lb ( 250 kg ) each pair
- 285° Maximum rotation angle, steel butt hinge with removable pin, good choice for gates, trailers, doors, or for tailgates
- Package Content: 6 x Weld on hinges
Last update on 2025-11-21 / Affiliate links / Images from Amazon Product Advertising API
As an Amazon Associate, I earn from qualifying purchases.
Safety Notes
- Grind clean before welding. Remove paint, mill scale, oil, or coating for full penetration.
- Tack both hinges first and verify alignment before final welding. A welded-in twist will bind the gate permanently.
- Use proper PPE: welding hood (ANSI Z87.1), FR gloves, long sleeves.
- Support the door/gate weight during install — never rely on a single tack to hold it.
- Prime and paint after installation unless stainless.
FAQ
Q: Are these hinges greaseable?
A: The listing does not state grease ports (Unknown). If long-life or daily cycling is important, consider adding your own lubrication point or choosing a hinge with built-in zert.
Q: Can these support large driveway gates?
A: Yes for medium/heavy gates, but without published load ratings (Unknown), oversize hinge count (3+ per gate) and ensure full welds.
Q: Are they stainless or mild steel?
A: The listing specifies “solid steel” but does not specify grade (Unknown). Treat as mild steel unless verified otherwise.
Q: Can they be installed vertically or horizontally?
A: Vertical is standard. Horizontal is possible but may shorten service life due to side loading.
Sources Checked
- Amazon product listing (ASIN B0BRY9P7D8)
- Manufacturer descriptions (limited)
- Industry standard practices for weld-on hinge installation
